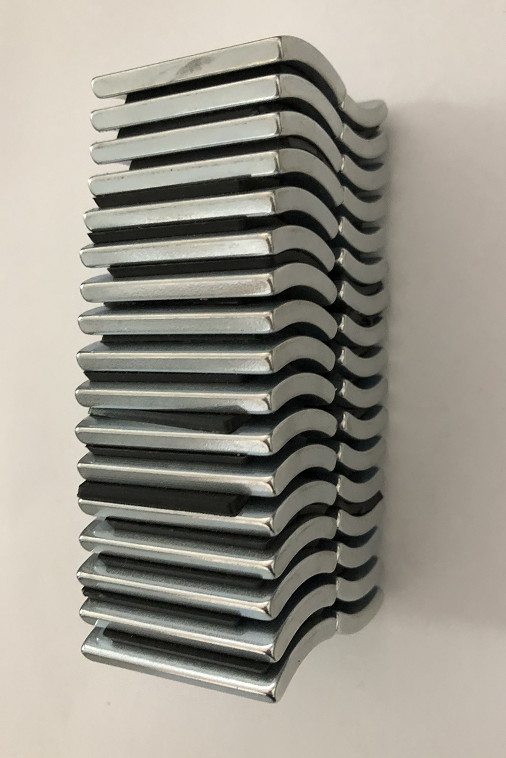

N42 Arc Shaped NdFeB Neodymium Magnet For Making Motor Prototype

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35
Minimum Order Quantity: 10 Pieces
Price: negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 10 - 15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 400000 Pieces per Month
Detail Information
Composite: Neodymium Magnet Shape: Arc Shaped
Application: Motor Magnet Product Name: Custom Arc Shape Neodymium Generator Magnets
Coating: NiCuNi Or Customized Material: Sintered Neodymium-Iron-Boron
Size: Customers' Request Magnetism Direction: Diametrically
Tolerance: +/-0.05mm Or +/-0.1mm Processing: Sintered Permanent Neodymium Magnet
High Light:

N42 NdFeB Neodymium Magnet

,

ODM NdFeB Neodymium Magnet

,

N42 ndfeb permanent magnets


Product Description

N42 Arc Shaped NdFeB Neodymium Magnet For Making Motor Prototype





DescriptionOf Neodymium magnet

Neodymium magnet is a permanent magnet made from an alloy of neodymium, iron and boron. NdFeB magnet are widely used in various fields, such as motors, speakers, electric generators etc. Besides, neodymium magnet is the strongest type of permanent magnet commercially available.
1. Grade of Jinshuo Neodymium Magnet: N35-N54, N35M-N52M, N33H-N50H, N30SH-N50SH, N30UH-N50UH, N30EH-N42EH, N28TH-N38TH
2. Shape and Size: Disc, Cylinder, Ring, Rectangle, Countersunk, Segment, Sphere, Special Shapes etc, all sizes or shapes can be customized.
3. Coating: Nickel, Zinc, Black Epoxy, Au (Golden) and so on.
4. Direction of Magnetisation: Axially, Radially, Thickness etc.
5. Application of Neodymium Magnet: Neodymium Magnets are widely used in various fields, such as motors, speakers, electric generators, separators, constructions, toys, holdings etc.



Rare earth Neodymium magnet (NdFeB) is a high performance permanent magnet, which is produced by Neodymium Iron, Boron and some other rare earth elements, as the strongest permanent magnets discovered up to now, is preferred by permanent magnetic devices, due to its highly cost-effective performance based on rich rare-earth resources, manufacture in large scale and technology development. it has a wide variety of applications on the motors, generators and couplings due to its high energy and reasonable price.







Specification Of Rare Earth Magnets

Type

N42 Arc Shaped NdFeB Neodymium Magnet For Making Motor Prototype

Material Sintered Neodymium Magnets
Coating Ni, Zn, Epoxy, Parylene, Gold, Passivated, etc
Shape Block, Bar, Cube, Disc, Ring, Cylinder, Ball, Arc, Trapezoid, etc
Density 7.5-7.6 g/cm³
Delivery date 7-10 days for common samples, 20-25 days for mass produciton

Magnetic Grade

&

Working Temperature

Magnetic Grade Working Temperature
N35-N45 80 ℃(176 ℉)
N48-N52 60 ℃(160 ℉)
35M-50M 100 ℃(212 ℉)
33H-48H 120℃(248 ℉)
33SH-45SH 150 ℃(302 ℉)
30UH-40UH 180 ℃(356 ℉)
28EH-38RH 200℃(392 ℉)
28AH-33AH 220 ℃(428 ℉)
Material neodymium magnet
Plating/Coating Ni- Cu-Ni, Znic
Grade Customized
Magnet shape Round, block, cylinder, ring bar, cube, accept customized
Size Customized
Magnetism direction

Round shape: axially,

block, thick ness

cylinder: axially

ring: axially

bar: thickness

cuber: thickness

Axially magnetized: magnetized pole at the flat ends

Thickness: magnetized pole at the biggest furface

Applications: Sensors, motors, filter automobiles, magnetics holders, loudspeakers, wind generators, medical equipments, etc.



Product Type:

N42 Arc Shaped NdFeB Neodymium Magnet For Making Motor Prototype

Material: Permanent Neodymium Iron Boron
Grade: N42
Plating/Coating: Ni-Cu-Ni
Szie: 50x10x5mm /1.97x0.40x0.20inch (Customizable)
Shape: Bar
Magnetism Direction: Lengh /Wide/High (Customize)
Telerance: ±0.05mm to ±0.1mm
BR Max: 13500 Gauss
BH Max: 44 MGOe
Max working Temp: ≤ 80 ° C
Certification: ISO9001:2008/SGS(ROHS&REACH)/MSDS
Used: wildely use in toys, hardware, electronics, motors, instruments, medical instruments and other applications





Feature Of Rare Earth Magnets

* It has high flexibility in shape and dimensions.

* It is possible to insert mold with other parts.

* It has no cracks or chips and is generally impact resistant.

* Multi-pole magnetization is possible.

* It has smaller specific gravity and is lighter than sintered magnets.



1. strong magnetic force

2. high intrinsic,coercive force

3. All shapes can be made

4. high accuracy

5. IECQ Certificate of Confirmity

Advantages Of Rare Earth Magnets

Higher unit magnetic properties than other magnet

Lower temperature coefficient of magnetic properties than ceramic but higher than SmCo type rare earth magnet

High power density

Compared with the traditional permanent magnet motor architecture, the magnetic field intensity on the other side is greatly increased due to the superposition of the parallel magnetic field and radial magnetic field after the Halbach magnetic ring decomposition, which can effectively reduce the volume of the motor and improve the power density of the motor.

Chute is no longer required for fixed rotor

In traditional permanent magnet motors, due to the inevitable harmonics of air gap magnetic field, chute is usually used to weaken the influence of air gap magnetic field. In Halbach motor, due to the high degree of sinusoidal distribution of air gap magnetic field and low harmonic content, the rotor does not need chute.





ApplicationOf Rare Earth Magnets

Motors/sensors for automobiles

Motors/sensors for home appliances OA equipment

Motors for digital camera

Various sensors

Electron,

electric apparatus,

packaging,

toy,

the intersection of gift and handicraft,

build up body magnetism accuse of car, electrical machinery,

little electrical machinery,

computer,

instrument,

motorcycle,

camera,

Mobile,

each field of clock and watch,

stereo,

electrical home appliances,

office automation,


Service:

1. OEM Manufacturing welcome: Product, Package.
2. Sample order/trial order.
3. We will reply you for your inquiry in 24 hours.

4. Neodymium Permanent Magnet is customized, the grade we could produce is N35-N52 (M,H,SH,UH,EH,AH), for the grade and shape of the Magnet, if you need, we could send you the catalogue. If you need technical support about the Permanent Magnet and Neodymium Permanent Magnet Assemblies, we could give you the biggest support.

5. after sending, we will track the products for you once every two days, until you get the products.

When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.





FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.

Q: What is the warranty?
A: The free warranty is one year from the day of Commissioning qualified. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q: What are your main product?

A: we are professional make magnet, neodymium magnet.

Q1:How can I get your catalogue and price list?

A1:Please let us know your email or contact us from website directly for our catalogue and price list;



Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods.



Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.



Q4: Can I visit you?

A4: Sure, our factory is in Dongguan, China. Please contact us to make an appointment.



Any questions, please feel free to contact us, we will provide quality services for you.
