Product Details
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35-N52
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for N52 Strong Neodymium Magnet for Wind Generators motor
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 600000 Pieces per Month
Type: |
Permanent |
Composite: |
Neodymium Magnet |
Shape: |
Arc Shaped |
Application: |
Motor Magnet |
Coating: |
NiCuNi Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered |
Port: |
Shenzhen Or Customer' Request |
Type: |
Permanent |
Composite: |
Neodymium Magnet |
Shape: |
Arc Shaped |
Application: |
Motor Magnet |
Coating: |
NiCuNi Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered |
Port: |
Shenzhen Or Customer' Request |

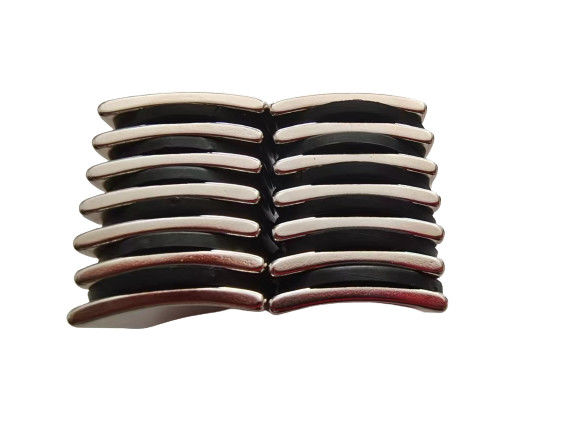

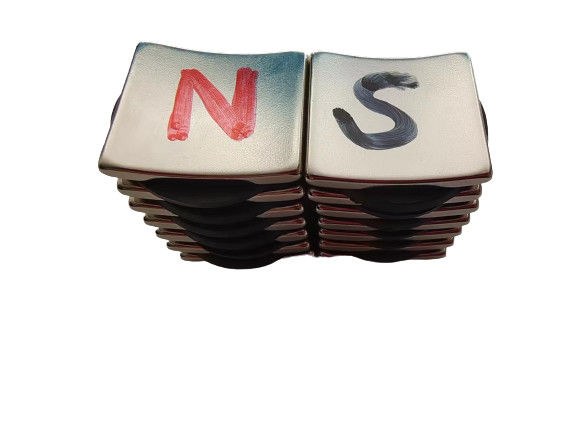

N52 Strong Neodymium Rare Earth Permanent Magnet For Wind Generators / Motor
NdFeB rare earth permanent magnets, which are strong magnetic, so don't ask us if we are strong magnetic. NdFeB is the best magnetic material and is a well-deserved strong magnet. Just as we wrote in the title, you can buy with confidence.
Neodymium (NdFeB) permanent magnet is composed of neodymium, iron, boron and a few transition metals. It has many advantages like high coercive force, high energy, high performance/ cost ratio and can be easily formed into various shapes and widely used in many fields such as aviation, electronics, instruments, meters, DC motors, Liner motors, MRI, medical and health products. It is the third generation of rare earth permanent magnet and at the same time the most powerful and advanced commercialized permanent magnet today.
| Product name |
N52 Strong Neodymium Rare Earth Permanent Magnet For Wind Generators / Motor |
| Shape | Arc shaped (Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
Magnetic Properties and Grade:
Magnetization direction:
Neodymium Magnets Shape and Application:
| Shape | Application |
|
Cylinder NdFeB Magnets Disc NdFeB Magnets |
a) Motors b) Sensors c) Microphones d) Switchboard |
|
Block Neodymium Cube Shape Magnet |
a) VCM b) Printer c) Magnetic chuck d) Switchboard |
|
Ring Neodymium Magnets Bar Magnets |
a) Horn, Trumpet b) Magnetic separation c) Loudspeakers |
|
Segment Neodymium Arc Segment Magnets |
a) Motor b) Wind turbines c) Wind generators d) Switchboard |
|
Customized Size Neodymium Magnets |
a) Motors b) Permanent-magnet machine c) Magnetic device d) Magnetic therapy |
FAQ for Permanent neodymium magnet?
Our Neodymium Magnets Advantage:
1. High Performance :
Our neodymium magnet for variable frequency compressor,motor, rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.
Neodymium magnet production flow:
Neodymium magnet melting-Pulverization-Magnetic filed orientation and molding-Sintering-Semi-finished inspection-Precision machining for cutting-Surface treatment-Magnetizing machine-inspection&packing-Ex factory
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
