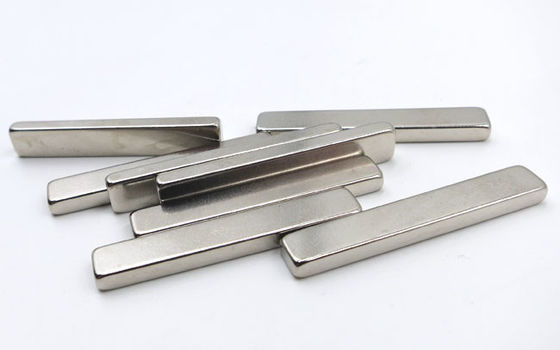

Rare Earth Strong Neodymium Magnets Block High Strength For Wind Generator

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: N35 - N52

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)

Delivery Time: 5 - 10 work days

Payment Terms: negotiable

Supply Ability: 10000 Piece/Pieces per Day

Get Best Price
Highlight:

motor neodymium magnet

,

permanent motor magnet

,

neodymium magnets block for wind generator

Composite:
Neodymium Magnet
Shape:
Custom
Application:
Motor Magnet
Product Name:
Strong Magnet Neodymium Wind Generator/generator Magnet
Coating:
NiCuNi Or Customized
Material:
Sintered Neodymium-Iron-Boron
Size:
Customers' Request
Magnetism Direction:
Axial Or Customized
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Port:
Shenzhen Or Customer' Request
Composite:
Neodymium Magnet
Shape:
Custom
Application:
Motor Magnet
Product Name:
Strong Magnet Neodymium Wind Generator/generator Magnet
Coating:
NiCuNi Or Customized
Material:
Sintered Neodymium-Iron-Boron
Size:
Customers' Request
Magnetism Direction:
Axial Or Customized
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Port:
Shenzhen Or Customer' Request
Rare Earth Strong Neodymium Magnets Block High Strength For Wind Generator

Rare Earth Strong Neodymium Magnets Block High Strength For Wind Generator



14 years experiences in manufacturing NdFeB magnets

Neodymium magnet size and shape can customize

Fast delivery and cheap price



 Features:



1) Smaller tolarance ensure the precision.

2) High agravity survival ability.

3) Higher ability of anticorrosion.



Neodymium magnet, also named NdFeB magnet, Neo magnet & Nd magnet, is mainly made of Neodymium, Iron and Boron with strongest power among all magnetic materials. Neodymium magnet can be easily shaped with high precision, widely used to motors, rotors, wind turbines, wind generators, sensors, loudspeakers, cars, mobile phones, home appliances, medical equipment, filters, and so on.



Product Description
Product name

Rare Earth Strong Neodymium Magnets Block High Strength For Wind Generator

Shape Bar (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955;  N52≥876;   N30SH≥1353;   N33AH≥2785
TW(degrees celsius)  N35≤80;    N52≤70;   N30SH≤150;   N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001



In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?



Plating Characteristics:



Rare Earth Strong Neodymium Magnets Block High Strength For Wind Generator 0









More Shapes:

Rare Earth Strong Neodymium Magnets Block High Strength For Wind Generator 1



Permanent NdFeB Neodymium magnets widely application:

1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone

2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch

3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor

4: Mechanical equipment: magnetic separator, magnetic holder

5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
