| Place of Origin: | People's republic of China |
|---|---|
| Brand Name: | VISION |
| Certification: | RoHS/ ISO/Ts16949:9000 |
| Model Number: | N35-N52 |
| Minimum Order Quantity: | 1 or 10 PIECES |
| Price: | Negotiable |
| Packaging Details: | Sea Pallet / Air Carton / Express Packaging / Plastic Tube / Wooden Case / standard export package/ all upon your request. |
| Delivery Time: | 5 - 15 work days |
| Payment Terms: | negotiable |
| Supply Ability: | 10000 pieces per Day |
| Type: | Permanent | Composite: | Neodymium Magnet |
|---|---|---|---|
| Shape: | Arc Shape | Application: | Industrial Magnet |
| Surface Coating: | NiCuNi Coating | Color: | Bright Silver |
| Magnetism Direction: | Thickness | Processing: | Sintered Rare Earth Neodymium Magnet |
| Size: | Customized Magnet Size | Grade: | N35-N52 (M.H.SH.UH.EH.AH) |
| Density: | 7.3~7.6g/cm3 | Tolerance: | 0.05mm/-0.05mm |
| Description: | Ndfeb Motor Magnets | Port: | Shenzhen Yantian Port |
| High Light: | motor neodymium magnet,permanent motor magnet,nicuni coating neodymium motor magnets |
||

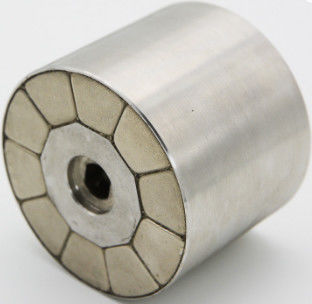

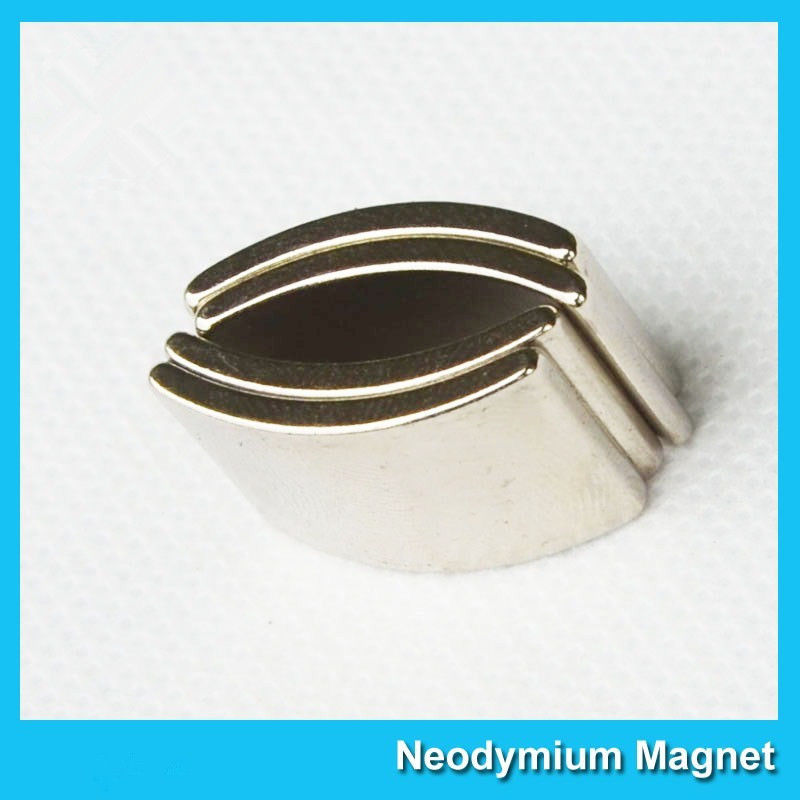

Permanent Neodymium Motor Magnets NiCuNi Coating Bright Silver Color
Sintered NdFeB magnet: is one of the high performance rare earth magnets, with high remanence, high coercive force, high energy product and high performance/cost ratio, It is easily produced into various sizes.
1. strong magnetic force
2. high intrinsic, coercive force
3. All shapes can be made
4. high accuracy
5. IECQ Certificate of Confirmity
|
Produce name |
Permanent Neodymium Motor Magnets NiCuNi Coating Bright Silver Color |
|
Shape |
Arc (Sintered NdFeB magnets shape can customized) |
|
Material |
NdFeB (Neodymium Iron Boron) |
|
Coating |
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
|
Tolerance in size |
+/-0.05mm or +/-0.1mm |
|
Magnetization direction |
Thickness, Length, axially, diameter, radially, multipolar |
|
Grade |
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
|
Br(kgs) |
N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
|
Hcj(ka/m) |
N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
|
TW(degrees celsius) |
N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
|
Application |
NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
|
MOQ |
Samples could be offered |
|
Delivery time |
3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
|
Certification |
ROHS, SGS, ISO9001 |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Material type and grade required
Size and shape, if available, a sketch or drawing with dimensions and tolerances.
Coating of the magnets
Application of the magnets
Max working temperature
Quantity required
Magnetized or not? Magnetization direction?
Magnetic property of Sintered NdFeB magnet:
More Shapes:
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
