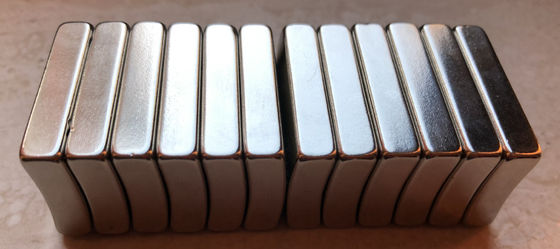

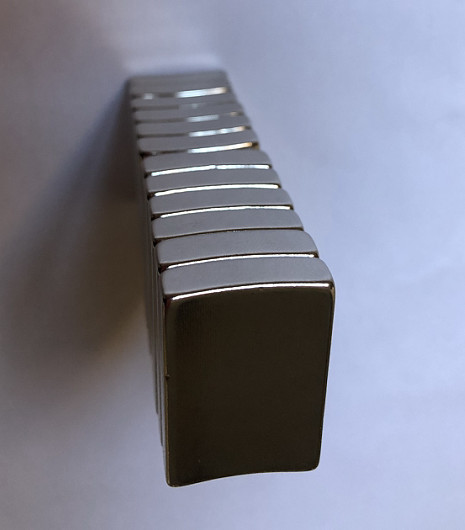

NdFeB Arc Shaped Neodymium Motor Magnets Permanent Thickness 6mm

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35
Minimum Order Quantity: 10 Pieces
Price: negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 10 - 15 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 400000 Pieces per Month
Detail Information
Type: Permanent Composite: Neodymium Magnet
Shape: Arc Shaped Application: Motor Magnet
Product Name: Custom Arc Shape Neodymium Generator Magnets Coating: NiCuNi Or Customized
Material: Sintered Neodymium-Iron-Boron Magnetism Direction: Diametrically
Tolerance: +/-0.05mm Or +/-0.1mm Processing: Sintered Permanent Neodymium Magnet
High Light:

NdFeB Neodymium Motor Magnets

,

6mm Neodymium Motor Magnets

,

Neodymium ndfeb arc magnets


Product Description

NdFeB Arc Shaped Neodymium Motor Magnets Permanent Thickness 6mm



NdFeB Arc Neodymium Motor Magnets Thickness 6mm For Making Motor





Quick detail Of Rare Earth Magnets

Product name: Rare Earth Bar Magnets,

Grade:N33-N52,33M-48M,33H-48H,30SH-45SH,30UH-38UH and 30EH-35EH;
Material:Permanent Neodymium Iron Boron, Ferrite

Application: Industrial Magnet,

Shape: Strip, Disc, Block, Cylinder, Ring, Arc, Customize

Composite: Neodymium Magnet

Tolerance: ±1%, 0.05mm

Size:Customized Magnet Size

Certification:REACH MSDS, CE, ROHS

Coating:Ni-Cu-Ni, Znic, Black Epoxy, Au,etc

Color:Bright Silver

Rare element: Pr,Nd,Pm,Sm,Co,Eu,Gd,Tb,Dy,La,Ce etc.



DescriptionOf Neodymium magnet

Neodymium magnet is a permanent magnet made from an alloy of neodymium, iron and boron. NdFeB magnet are widely used in various fields, such as motors, speakers, electric generators etc. Besides, neodymium magnet is the strongest type of permanent magnet commercially available.
1. Grade of Jinshuo Neodymium Magnet: N35-N54, N35M-N52M, N33H-N50H, N30SH-N50SH, N30UH-N50UH, N30EH-N42EH, N28TH-N38TH
2. Shape and Size: Disc, Cylinder, Ring, Rectangle, Countersunk, Segment, Sphere, Special Shapes etc, all sizes or shapes can be customized.
3. Coating: Nickel, Zinc, Black Epoxy, Au (Golden) and so on.
4. Direction of Magnetisation: Axially, Radially, Thickness etc.
5. Application of Neodymium Magnet: Neodymium Magnets are widely used in various fields, such as motors, speakers, electric generators, separators, constructions, toys, holdings etc.



Rare earth Neodymium magnet (NdFeB) is a high performance permanent magnet, which is produced by Neodymium Iron, Boron and some other rare earth elements, as the strongest permanent magnets discovered up to now, is preferred by permanent magnetic devices, due to its highly cost-effective performance based on rich rare-earth resources, manufacture in large scale and technology development. it has a wide variety of applications on the motors, generators and couplings due to its high energy and reasonable price.







Specification Of Rare Earth Magnets

Type

Permanent Powerful Neodymium Magnets

Material

Sintered Neodymium Magnets

Coating

Ni, Zn, Epoxy, Parylene, Gold, Passivated, etc

Shape

Block, Bar, Cube, Disc, Ring, Cylinder, Ball, Arc, Trapezoid, etc

Density

7.5-7.6 g/cm³

Delivery date

7-10 days for common samples, 20-25 days for mass produciton

Magnetic Grade

&

Working Temperature

Magnetic Grade

Working Temperature

N35-N45

80 ℃(176 ℉)

N48-N52

60 ℃(160 ℉)

35M-50M

100 ℃(212 ℉)

33H-48H

120℃(248 ℉)

33SH-45SH

150 ℃(302 ℉)

30UH-40UH

180 ℃(356 ℉)

28EH-38RH

200℃(392 ℉)

28AH-33AH

220 ℃(428 ℉)

Material

neodymium magnet

Plating/Coating

Ni- Cu-Ni, Znic

Grade

Customized

Magnet shape

Round, block, cylinder, ring bar, cube, accept customized

Size

Customized

Magnetism direction

Round shape: axially,

block, thick ness

cylinder: axially

ring: axially

bar: thickness

cuber: thickness

Axially magnetized: magnetized pole at the flat ends

Thickness: magnetized pole at the biggest furface

Applications:

Sensors, motors, filter automobiles, magnetics holders, loudspeakers, wind generators, medical equipments, etc.



Product Type:

Promotional Electron Magnetic Sintered Neodymium Magnet

Material:

Permanent Neodymium Iron Boron

Grade:

N42

Plating/Coating:

Ni-Cu-Ni

Szie:

50x10x5mm /1.97x0.40x0.20inch (Customizable)

Shape:

Bar

Magnetism Direction:

Lengh /Wide/High (Customize)

Telerance:

±0.05mm to ±0.1mm

BR Max:

13500 Gauss

BH Max:

44 MGOe

Max working Temp:

≤ 80 ° C

Certification:

ISO9001:2008/SGS(ROHS&REACH)/MSDS

Used:

wildely use in toys, hardware, electronics, motors, instruments, medical instruments and other applications





Feature Of Rare Earth Magnets

* It has high flexibility in shape and dimensions.

* It is possible to insert mold with other parts.

* It has no cracks or chips and is generally impact resistant.

* Multi-pole magnetization is possible.

* It has smaller specific gravity and is lighter than sintered magnets.



1. strong magnetic force

2. high intrinsic,coercive force

3. All shapes can be made

4. high accuracy

5. IECQ Certificate of Confirmity

Advantages Of Rare Earth Magnets

Higher unit magnetic properties than other magnet

Lower temperature coefficient of magnetic properties than ceramic but higher than SmCo type rare earth magnet

High power density

Compared with the traditional permanent magnet motor architecture, the magnetic field intensity on the other side is greatly increased due to the superposition of the parallel magnetic field and radial magnetic field after the Halbach magnetic ring decomposition, which can effectively reduce the volume of the motor and improve the power density of the motor.

Chute is no longer required for fixed rotor

In traditional permanent magnet motors, due to the inevitable harmonics of air gap magnetic field, chute is usually used to weaken the influence of air gap magnetic field. In Halbach motor, due to the high degree of sinusoidal distribution of air gap magnetic field and low harmonic content, the rotor does not need chute.





ApplicationOf Rare Earth Magnets

Motors/sensors for automobiles

Motors/sensors for home appliances OA equipment

Motors for digital camera

Various sensors

Electron,

electric apparatus,

packaging,

toy,

the intersection of gift and handicraft,

build up body magnetism accuse of car, electrical machinery,

little electrical machinery,

computer,

instrument,

motorcycle,

camera,

Mobile,

each field of clock and watch,

stereo,

electrical home appliances,

office automation,


Service:

1. OEM Manufacturing welcome: Product, Package.
2. Sample order/trial order.
3. We will reply you for your inquiry in 24 hours.

4. Neodymium Permanent Magnet is customized, the grade we could produce is N35-N52 (M,H,SH,UH,EH,AH), for the grade and shape of the Magnet, if you need, we could send you the catalogue. If you need technical support about the Permanent Magnet and Neodymium Permanent Magnet Assemblies, we could give you the biggest support.

5. after sending, we will track the products for you once every two days, until you get the products.

When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.





FAQ

Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.

Q: What is the warranty?
A: The free warranty is one year from the day of Commissioning qualified. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q: What are your main product?

A: we are professional make magnet, neodymium magnet.

Q1:How can I get your catalogue and price list?

A1:Please let us know your email or contact us from website directly for our catalogue and price list;



Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods.



Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping.

We will offer the charge to you as you requested.



Q4: Can I visit you?

A4: Sure, our factory is in Dongguan, China. Please contact us to make an appointment.



Q5: What if there is quality problem when we get the goods?

A5: If there is quality problem when un-package the goods, you can take pictures for our reference.

Our QC department will check the problem and give best solutions to you.

Furthermore, we will also take action to improve the quality in future.



Any questions, please feel free to contact us, we will provide quality services for you.
