| Place of Origin: | People's republic of China |
|---|---|
| Brand Name: | VISION |
| Certification: | ISO9001:2008; Rohs, Reach, SGS |
| Model Number: | N30 - N52 |
| Minimum Order Quantity: | 1 PIECE |
| Price: | Negotiable |
| Packaging Details: | Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for ferrite ring magnet |
| Delivery Time: | 5- 15 work days |
| Payment Terms: | negotiable |
| Supply Ability: | 50000 Pieces per Day |
| Type: | Permanent | Application: | Kitchware |
|---|---|---|---|
| Size: | Customers' Request | Magnetism Direction: | Radial Or Customized |
| Tolerance: | +/- 2% | Processing: | Ceramic Processing Technology |
| Grade: | N35 - N52 | Port: | Shenzhen Or Customer' Request |
| High Light: | N35 NdFeB Neodymium Magnets,Groove NdFeB Neodymium Magnets,N35 ndfeb permanent magnet |
||

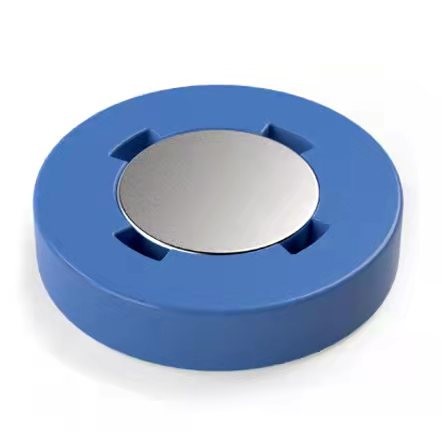

N35 Grade NdFeB Custom Neodymium Magnets Dia.18mm With Groove For Magnetic Stand Use
We can produce the NdFeB Permanent Neodymium Magnets in different sizes, different shapes, different grades (strengths and temperature ratings), different coatings/finishings and different magnetizations as part of our custom magnet (made-to-order) service.
Rare earth Neodymium magnet (NdFeB) is a high performance permanent magnet, which is produced by Neodymium Iron, Boron and some other rare earth elements, as the strongest permanent magnets discovered up to now, is preferred by permanent magnetic devices, due to its highly cost-effective performance based on rich rare-earth resources, manufacture in large scale and technology development. it has a wide variety of applications on the motors, generators and couplings due to its high energy and reasonable price.
| Produce name | N35 Grade NdFeB Custom Neodymium Magnets Dia.18mm With Groove For Magnetic Stand Use |
| Shape | Disc (Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade | N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.
Or for customer request.
