Product Details
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35-N52
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for sintered permanent NdFeB neodymium mangets, or for customer request.
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 10000 Pieces per Day
Type: |
Permanent |
Composite: |
Pneumatic Neodymium-Iron-Boron |
Shape: |
Cylinder |
Application: |
Industrial Magnet |
Coating: |
Silver Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered Permanent Neodymium Magnet |
Port: |
Shenzhen Or Customer' Request |
Type: |
Permanent |
Composite: |
Pneumatic Neodymium-Iron-Boron |
Shape: |
Cylinder |
Application: |
Industrial Magnet |
Coating: |
Silver Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered Permanent Neodymium Magnet |
Port: |
Shenzhen Or Customer' Request |

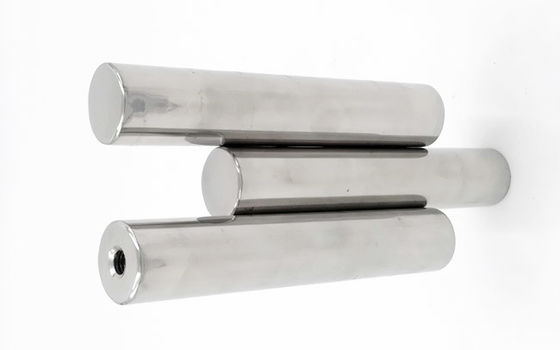

Pneumatic Iron Boron Custom Neodymium Magnets Cylinder N35 N42 N45 N52
Our Neodymium Magnets Advantage:
1. High Performance :
Our neodymium magnet for variable frequency compressor,motor, rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.
| Product name |
Pneumatic Iron Boron Custom Neodymium Magnets Cylinder N35 N42 N45 N52 |
| Shape | Cylinder (Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Plating Characteristics:
More Shapes:
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
