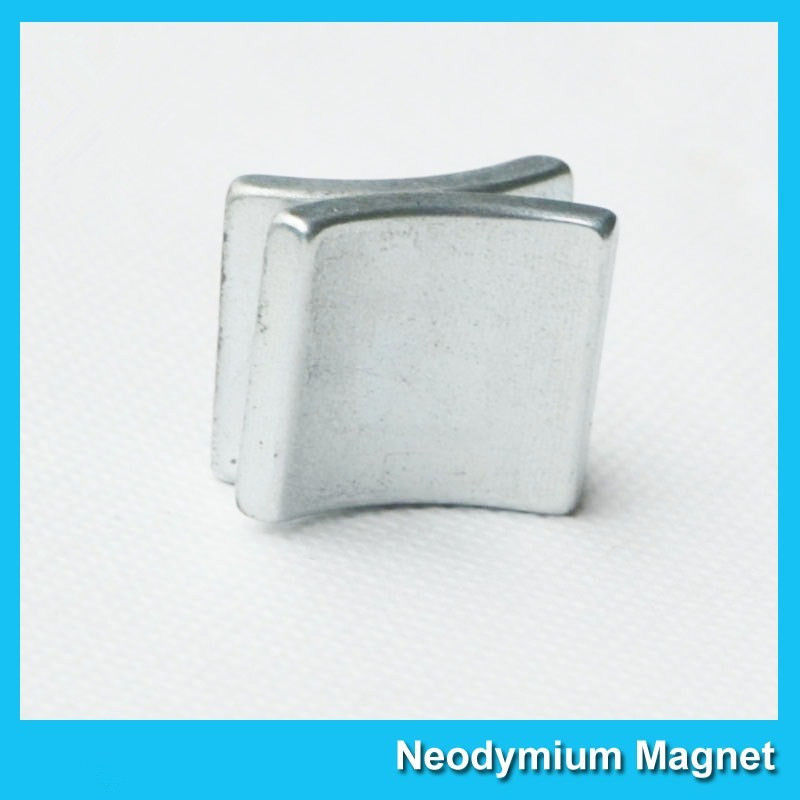

Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: N35-N52

Payment & Shipping Terms

Minimum Order Quantity: 1 PIECE

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)

Delivery Time: 5 - 15 work days

Payment Terms: negotiable

Supply Ability: 40000000 pieces per Month

Get Best Price
Highlight:

neodymium permanent magnet for motor

,

permanent motor magnet

,

curved n52 grade ndfeb magnet

Type:
Permanent
Composite:
Neodymium Magnet
Shape:
Arc Shaped
Application:
Moto Magnet
Coating:
NiCuNi Or Customized
Material:
Sintered Neodymium-Iron-Boron
Size:
Customers' Request
Magnetism Direction:
Axial Or Customized
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Port:
Shenzhen Or Customer' Request
Type:
Permanent
Composite:
Neodymium Magnet
Shape:
Arc Shaped
Application:
Moto Magnet
Coating:
NiCuNi Or Customized
Material:
Sintered Neodymium-Iron-Boron
Size:
Customers' Request
Magnetism Direction:
Axial Or Customized
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Port:
Shenzhen Or Customer' Request
Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator

Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator
Sintered Neodymium Strong Magnets are widely used in many fields, such as motors,
sensors, microphones, wind turbines, wind generators, VCMs in hard disk drives,printer,
switchboard, loudspeakers, magnetic separation, magnetic hooks,magnetic holder,
magnetic chuck, common daily use, and so on.


Product Description
Product name

Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator

Shape Arc shaped (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size+/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955;  N52≥876;   N30SH≥1353;   N33AH≥2785
TW(degrees celsius)  N35≤80;    N52≤70;   N30SH≤150;   N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001


In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

Plating Characteristics:
Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator 0
Magnetization direction:
Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator 1

More Shapes:
Curved N52 Grade Ndfeb Permanent Magnet For Motor / Wind Turbines Generator 2
About us:
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.

Our Services
What’s the payment we accept?
For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.
For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.

What’s the MOQ?
10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.
Sample order is accepted.

What’s the delivery time?
5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.

How can i contact you?
Here is the contact information, please feel free to contact us in anytime, we will try to reply you within 24 hours.
