Product Details
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: Y30 Y30BH
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for 53mm x 24mm x 11mm ring shape ferrite speaker magnet
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 50000 Pieces per Day
Type: |
Permanent |
Composite: |
Ferrite Magnet |
Shape: |
Ring |
Application: |
Industrial Magnet |
Properities: |
Anisotropic |
Material: |
Sro Or Bao And Fe2o3 |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/- 2% |
Processing: |
Ceramic Processing Technology |
Density: |
4.8 - 4.9 G/cm3 |
Grade: |
Y30 Y30BH |
Port: |
Shenzhen Or Customer' Request |
Type: |
Permanent |
Composite: |
Ferrite Magnet |
Shape: |
Ring |
Application: |
Industrial Magnet |
Properities: |
Anisotropic |
Material: |
Sro Or Bao And Fe2o3 |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/- 2% |
Processing: |
Ceramic Processing Technology |
Density: |
4.8 - 4.9 G/cm3 |
Grade: |
Y30 Y30BH |
Port: |
Shenzhen Or Customer' Request |

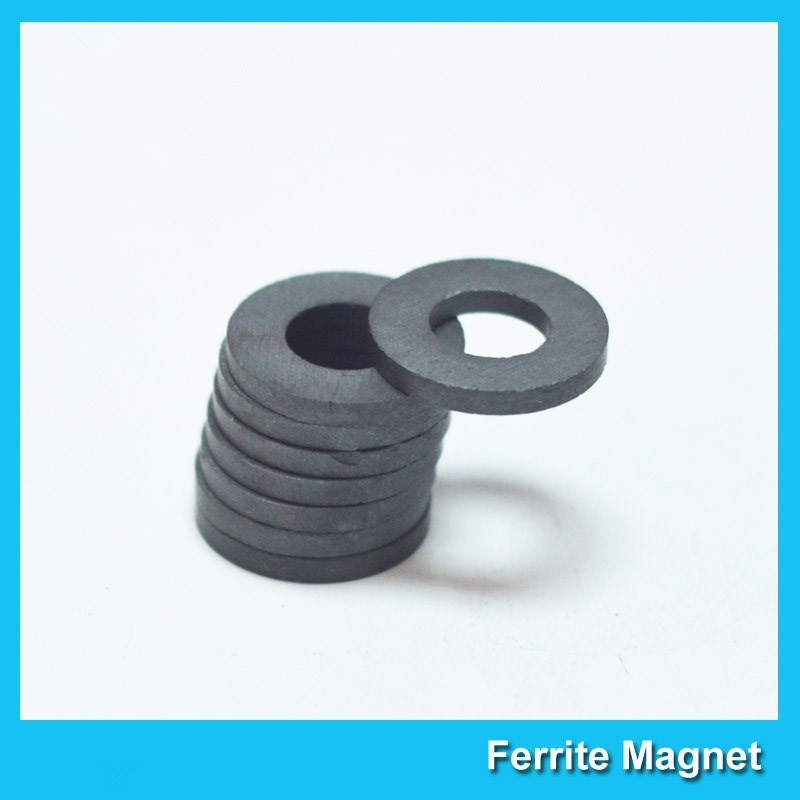

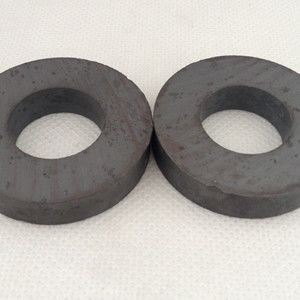

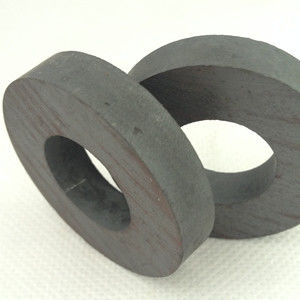

Industrial Large Ring Shape Ferrite Speaker Magnet 53mm X 24mm X 11mm
Applications of Ferrite Magnets:
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
| Produce name |
Industrial Large Ring Shape Ferrite Speaker Magnet 53mm X 24mm X 11mm |
| Shape | ring shape (ferrite magnet shape can customized) |
| Material | Sro or Bao and Fe2o3 |
| Coating | No |
| Tolerance in size | Length and Width: +/- 2%, Height: +/- 0.1 |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
Y25, Y30, Y33, Y35 |
| Process | Sintered Ceramic processing technology |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Application | Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc |
| Certification | ROHS, SGS, ISO9001 |
| Characteristics | Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized |
| Payment | T/T, western Union, Paypal, L/C |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
More Shapes:
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.
Or for customer request.
