Rare Earth Permanent Ferrite Magnet Y30 25 X 13 X 6mm For Water Pumps

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: C5/C8/C1/Y30/Y30BH/Y35
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 8000000 Pieces per Month
Detail Information
Type: Permanent Composite: Ferrite Magnet
Shape: Ring Application: Industrial Magnet
Properities: Anisotropic Material: Sro Or Bao And Fe2o3
Size: Customers' Request Magnetism Direction: Axial Or Customized
Tolerance: +/- 2% Processing: Ceramic Processing Technology
Density: 4.8 - 4.9 G/cm3 Grade: C5 C8 Y30 Y30BH Y33 Y35
Port: Shenzhen Or Customer' Request
High Light:

ring permanent magnet


ring shaped magnet

Product Description

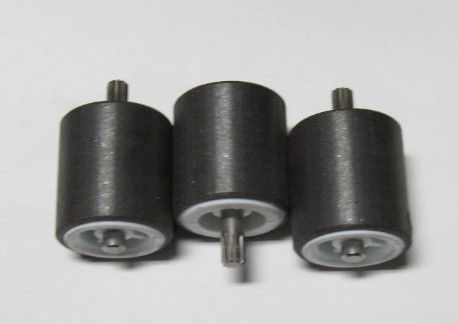

Rare Earth Ferrite Ring Magnet Y30 25 X 13 X 6mm For Water Pumps

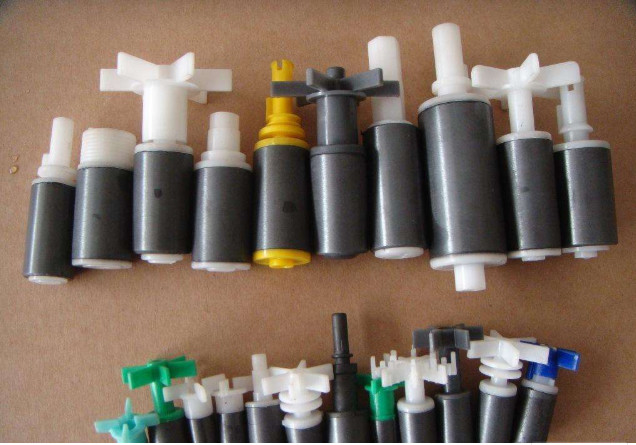

Custom Big Ferrite magnet for water pumps, air pumps, motors.

Features: A low cost alternative to other magnetic materials, offers relatively high operating temperatures and good resistance to corrosion & demagnetization. However, it has lower energy levels (Br) and is brittle in nature.


Product Description
Produce name

Rare Earth Ferrite Ring Magnet Y30 25 X 13 X 6mm For Water Pumps

Shape Ring shape (ferrite magnet shape can customized)
Material Sro or Bao and Fe2o3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar


Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C


Export Advantage:

  1. All inquiries, questions and emails will be replied within 24 hours.
  2. Samples and small quantity are available.
  3. Stock material for stable production.
  4. Most favorable Price is available.
  5. Excellent shipping forwarder to help to delivery magnet
  6. Flexible Payment items include T/T in dvance and western union and L/C at sight or others
  7. Quick deliery time & precise size tolerance
  8. Good quality and assured service

Applications of Ferrite Magnets:

• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets


Company Information

Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.

Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.


 Rare Earth Permanent Ferrite Magnet Y30 25 X 13 X 6mm For Water Pumps 0

Rare Earth Permanent Ferrite Magnet Y30 25 X 13 X 6mm For Water Pumps 1


Packaging & Shipping

Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the ferrite magnets.

Or for customer request.

Rare Earth Permanent Ferrite Magnet Y30 25 X 13 X 6mm For Water Pumps 2


Our Services

What’s the payment we accept?

For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.

For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.

What’s the MOQ?

10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.

Sample order is accepted.

What’s the delivery time?

5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.
