4.8-4.9G/cm3 Customized Permanent Ferrite Magnet Block 40x25x10MM

Basic Information
Place of Origin: Guangdong, China (Mainland)
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: Y25-Y35
Minimum Order Quantity: 10 - 999999 Pieces
Price: US $0.20
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for Super Strong block barium ferrite magnet
Supply Ability: 5000000000 Piece/Pieces per Month
Detail Information
Type: Permanent Name: Ferrite Magnet Block
Shape: Block Product Name: Super Strong Block Barium Ferrite Magnet
Material: Sro Or Bao And Fe2o3 Size: Customers' Request
Magnetism Direction: Thickness Or Customized Tolerance: +/- 2%
Processing: Ceramic Processing Technology Density: 4.8 - 4.9 G/cm3
Grade: Y30 Y30BH Y33 Y35 Y40
High Light:

Y30 Ferrite Magnet Block

,

Bao Ferrite Magnet Block

,

Y40 Ferrite Block Magnets


Product Description

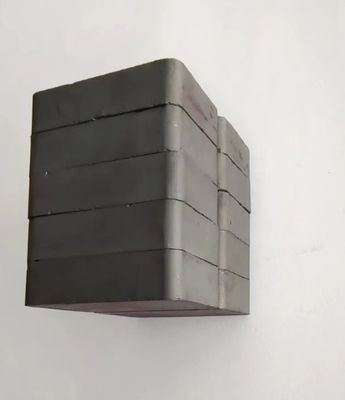

Customized Permanent Ferrite Magnet Block 40x25x10MM



Main features:

* It has high flexibility in shape and dimensions.

* It is possible to insert mold with other parts.

* It has no cracks or chips and is generally impact resistant.

* Multi-pole magnetization is possible.

* It has smaller specific gravity and is lighter than sintered magnets.



Product Description



Produce name

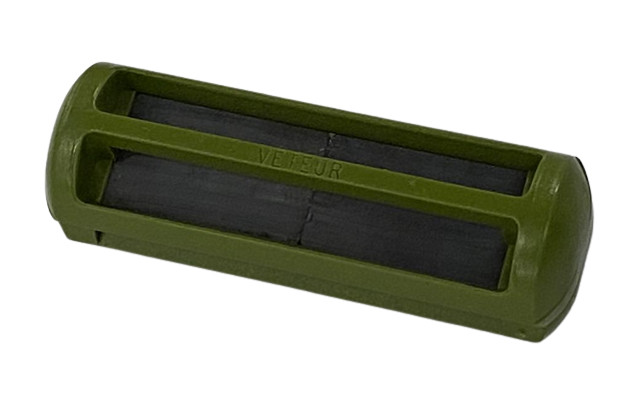

Customized Ferrite Magnet Block 40x25x10 MM For Veterinary Instruments And Livestock Material Use

Shape Block (ferrite magnet shape can customized)
Material Sro or Bao and Fe2o3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

Y25, Y30, Y33, Y35

Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C



In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Application of the magnets
  4. Max working temperature
  5. Quantity required
  6. Delivery with Magnetized or not? Magnetization direction?



Material Grade Specification:



 4.8-4.9G/cm3 Customized Permanent Ferrite Magnet Block 40x25x10MM 0

Magnetization direction:

4.8-4.9G/cm3 Customized Permanent Ferrite Magnet Block 40x25x10MM 1



More Shapes:

4.8-4.9G/cm3 Customized Permanent Ferrite Magnet Block 40x25x10MM 2



Applications of Ferrite Magnets:

• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts

Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
