Zinc Coating Rare Earth Permanent Magnets N50 Powerful 20*20mm

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: N35-N52

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)

Delivery Time: 5 - 15 work days

Payment Terms: negotiable

Supply Ability: 10000 Pieces per Day

Get Best Price
Highlight:

SGS Rare Earth Permanent Magnets

,

N50 Rare Earth Permanent Magnets

,

N50 rare earth magnets

Type:
Permanent
Composite:
Neodymium Magnet
Shape:
Disc
Application:
Industrial Magnet
Coating:
Zinc Or Customized
Material:
Sintered Neodymium-Iron-Boron
Magnetism Direction:
Axial Or Customized
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Type:
Permanent
Composite:
Neodymium Magnet
Shape:
Disc
Application:
Industrial Magnet
Coating:
Zinc Or Customized
Material:
Sintered Neodymium-Iron-Boron
Magnetism Direction:
Axial Or Customized
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet

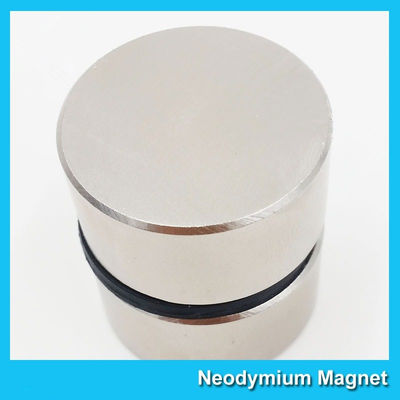

Zinc Coating Rare Earth Permanent Magnets N50 Powerful 20*20mm

Zinc Coating Rare Earth Permanent Magnets N50 Powerful 20*20mm

Zinc Coating Strong Industrial Neodymium Magnets N50 Powerful 20*20mm

NdfeB Neodymium rare earth permanent magnets are widely use in many area,Such as Motors, Sensor, Speaker, Rotors, Alarm, Microphone, Wind turbines/Wind generators, Magnetic Hooks, Magnetic Holder, Filters automoblies and so on.

Product Description

Product name

Zinc Coating Strong Industrial Neodymium Magnets N50 Powerful 20*20mm

Shape Disc (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955;  N52≥876;   N30SH≥1353;   N33AH≥2785
TW(degrees celsius)  N35≤80;    N52≤70;   N30SH≤150;   N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001



Advantages Of Industrial Neodymium Magnets
Higher unit magnetic properties than other magnet
Lower temperature coefficient of magnetic properties than ceramic but higher than SmCo type rare earth magnet
High power density
Compared with the traditional permanent magnet motor architecture, the magnetic field intensity on the other side is greatly increased due to the superposition of the parallel magnetic field and radial magnetic field after the Halbach magnetic ring decomposition, which can effectively reduce the volume of the motor and improve the power density of the motor.
Chute is no longer required for fixed rotor
In traditional permanent magnet motors, due to the inevitable harmonics of air gap magnetic field, chute is usually used to weaken the influence of air gap magnetic field. In Halbach motor, due to the high degree of sinusoidal distribution of air gap magnetic field and low harmonic content, the rotor does not need chute.

In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

NdFeb Neodymium Magnet Material Grade Specification:
Zinc Coating Rare Earth Permanent Magnets N50 Powerful 20*20mm 0
Plating Characteristics:
Zinc Coating Rare Earth Permanent Magnets N50 Powerful 20*20mm 1
Zinc Coating Rare Earth Permanent Magnets N50 Powerful 20*20mm 2





Company Information

Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
