Home > products > Custom Neodymium Magnets > Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly

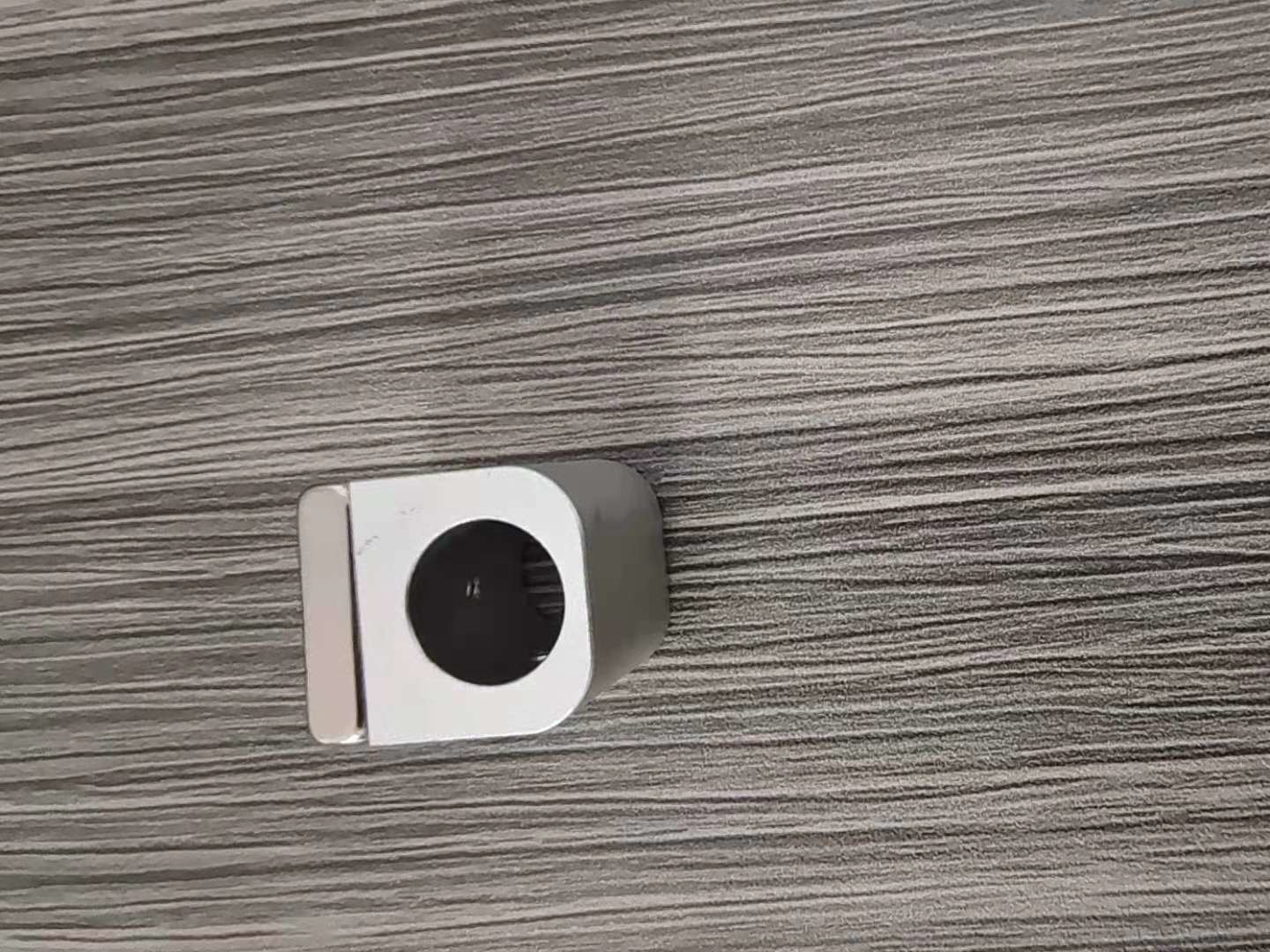

Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: N35

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for ferrite ring magnet

Delivery Time: 5- 15 work days

Payment Terms: negotiable

Supply Ability: 50000 Pieces per Day

Get Best Price
Highlight:

Custom Shaped Neodymium Magnets N35

,

N35 Countersunk Neodymium Magnets

,

20X20X5mm Countersunk Neodymium Magnets

Type:
Permanent
Composite:
Neodymium Magnet
Shape:
Custom
Application:
Speaker Magnet
Size:
Customers' Request
Magnetism Direction:
Radial Or Customized
Tolerance:
+/- 2%
Processing:
Ceramic Processing Technology
Grade:
N35 - N52
Port:
Shenzhen Or Customer' Request
Type:
Permanent
Composite:
Neodymium Magnet
Shape:
Custom
Application:
Speaker Magnet
Size:
Customers' Request
Magnetism Direction:
Radial Or Customized
Tolerance:
+/- 2%
Processing:
Ceramic Processing Technology
Grade:
N35 - N52
Port:
Shenzhen Or Customer' Request
Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly

Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly



We can produce the NdFeB Permanent Neodymium Magnets in different sizes, different shapes, different grades (strengths and temperature ratings), different coatings/finishings and different magnetizations as part of our custom magnet (made-to-order) service.



Produce name Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly
Shape Block (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955; N52≥876; N30SH≥1353; N33AH≥2785
TW(degrees celsius) N35≤80; N52≤70; N30SH≤150; N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001

In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

Magnetization direction:
Thickness Magnetized
Axially Magnetized
Diametrally Magnetized
Multi-poles magnetized
Radial Magnetized
Customzied specific requirements magnetized

N50 Neodymium Super Strong Disc Magnet for Sleep Mask / Joint Product

Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments


In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Application of the magnets
  4. Max working temperature
  5. Quantity required
  6. Delivery with Magnetized or not? Magnetization direction?

 Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly 1

Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd., is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.

Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.

 Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly 2

Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly 3



Custom Shaped Neodymium Magnets N35 Countersunk N35-20X20X5mm With Assembly 4

Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.

Or for customer request.
