| Place of Origin: | People's republic of China |
|---|---|
| Brand Name: | VISION |
| Certification: | ISO9001:2008; Rohs, Reach, SGS |
| Model Number: | C8 |
| Minimum Order Quantity: | 1 PIECE |
| Price: | Negotiable |
| Packaging Details: | Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) |
| Delivery Time: | 5 - 15 work days |
| Payment Terms: | negotiable |
| Supply Ability: | 8000000 Pieces per Month |
| Type: | Permanent | Composite: | Ferrite Magnet |
|---|---|---|---|
| Shape: | Block | Application: | Industrial Magnet |
| Properities: | Isotropic | Material: | Sro Or Bao And Fe2o3 |
| Size: | Customers' Request | Magnetism Direction: | Axial Or Customized |
| Tolerance: | +/- 2% | Processing: | Ceramic Processing Technology |
| Density: | 4.8 - 4.9 G/cm3 | Grade: | C5 C8 Y30 Y30BH Y33 Y35 |
| Port: | Shenzhen Or Customer' Request | ||
| High Light: | Block Shape Y30 Ferrite Magnet,Musical Instruments Ferrite Block Magnets,C8 Grade Ferrite Block Magnets |
||
Ceramic Blocks C8 Magnets 30 x 8 x 8mm Magnetization Through 8mm For Musical Instruments Guitar Pickups
| Produce name | Ceramic Blocks C8 Magnets 30 x 8 x 8mm Magnetization Through 8mm For Musical Instruments Guitar Pickups |
| Shape | Block shape (ferrite magnet shape can customized) |
| Material | Sro or Bao and Fe2o3 |
| Coating | No |
| Tolerance in size | Length and Width: +/- 2%, Height: +/- 0.1 |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade | C5/C8/C1/Y30/Y30BH/Y35 |
| Process | Sintered Ceramic processing technology |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Application | Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc |
| Certification | ROHS, SGS, ISO9001 |
| Characteristics | Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized |
| Payment | T/T, western Union, Paypal, L/C |
Applications of Ferrite Magnets:
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.

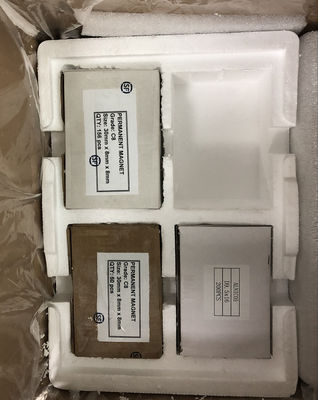

Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the ferrite magnets.
Or for customer request.
