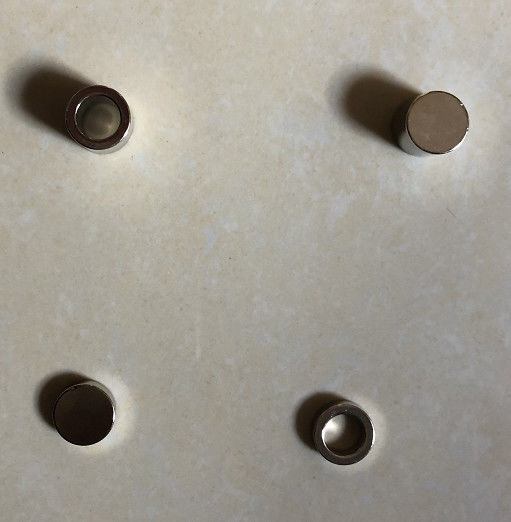

Silver Shine Color Neodymium Magnets Strong Disc N35 Grade 18mm X 15mm

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35 - N52
Minimum Order Quantity: 3 PIECES
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 5 - 10 work days
Payment Terms: negotiable
Supply Ability: 10000 Pieces per Day
Detail Information
Type: Permanent Composite: Neodymium Magnet
Shape: Disc Circular Application: Industrial Magnet
Coating: Silver Or Customized Material: Sintered Neodymium-Iron-Boron
Size: Customers' Request Magnetism Direction: Axial Or Customized
Tolerance: +/-0.05mm Or +/-0.1mm Processing: Sintered Permanent Neodymium Magnet
Port: Shenzhen Or Customer' Request
High Light:

N35 Grade Neodymium Magnets Disc

,

18mm X 15mm Strong Disc Magnets

,

N35 Strong Neodymium Disc Magnets


Product Description

Silver shine Color Neodymium Magnets Strong Disc N35 Grade 18mm X 15mm


We can produce the NdFeB Permanent Neodymium Magnets in different sizes, different shapes, different grades (strengths and temperature ratings), different coatings/finishings and different magnetizations as part of our custom magnet (made-to-order) service.

Our Neodymium Magnets Advantage:
1. High Performance :
Our neodymium magnet for variable frequency compressor,motor, rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.

Product Description
Product name

Silver shine Color Neodymium Magnets Strong Disc N35 Grade 18mm X 15mm

Shape Disc (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955;  N52≥876;   N30SH≥1353;   N33AH≥2785
TW(degrees celsius)  N35≤80;    N52≤70;   N30SH≤150;   N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001


In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

Plating Characteristics:
Silver Shine Color Neodymium Magnets Strong Disc N35 Grade 18mm X 15mm 0
More Shapes:
Silver Shine Color Neodymium Magnets Strong Disc N35 Grade 18mm X 15mm 1

Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
