Product Details
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35-N52
Payment & Shipping Terms
Minimum Order Quantity: 1 or 10 PIECES
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 10000 Pieces per Day
Type: |
Permanent |
Composite: |
Neodymium Magnet |
Shape: |
Disc |
Application: |
Education |
Coating: |
Silver Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Thickness Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered Permanent Neodymium Magnet |
Port: |
Shenzhen Or Customer' Request |
Type: |
Permanent |
Composite: |
Neodymium Magnet |
Shape: |
Disc |
Application: |
Education |
Coating: |
Silver Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Thickness Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered Permanent Neodymium Magnet |
Port: |
Shenzhen Or Customer' Request |

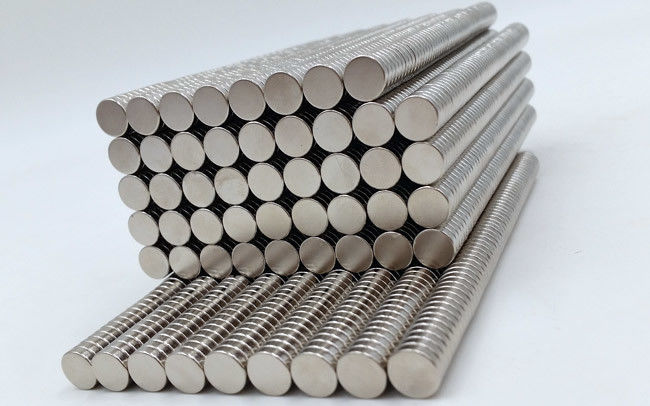

Sintered NdFeb Disc ND35 D15*1mm Magnets For Education Material
Our Neodymium Magnet Advantages:
1. High Performance :
Our neodymium magnet for variable frequency compressor,motor, rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.
permanent magnet is widely used in motor, automobile, wind turbine, sound systems, speakers, car horns, earphones,
electroacoustic, communication, VCM, aerospace, nuclear magnetic resonance, magnetic components, fridge magnet, teaching tools, educational toys, curtains, curt kitchen knife holders, photo frame holders, car mobile phone holder, bag button magnets, jewelry, clothing magnets, etc.
| 1. Excellent performance neodymium magnet for compressor,motor,rotor.. |
| 2. Low temperature coefficient. |
| 3. Irreversible demagnetizaion rate on high temperature. |
| 4. High corrosion resistance under high temperature environment fill with freon. |
| 5. Improve the efficiency and stability of air conditioner's compressor. |
Neodymium magnet description:
| Product name |
Sintered NdFeb Disc ND35 D15*1mm Magnets For Education Material |
| Shape | Block(Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
Magnetic properties and grade:
|
Grade |
Br mT |
Hcb KA/m |
Hcj KA/m |
BHmax kj/m3 |
Max Operation |
|
N35 |
1170-1210(11.7-12.1). |
≥868(≥10.9) |
≥955(≥12) |
263-287(33-36) |
80 |
|
N38 |
1210-1250(12.1-12.5) |
≥899(≥11.3) |
≥955(≥12) |
287-310(36-39) |
80 |
|
N42 |
1280-1320(12.8-13.2) |
≥923(≥11.6) |
≥955(≥12) |
318-342(40-43) |
80 |
|
N45 |
1320-1380(13.2-13.8) |
≥876(≥11.0) |
≥955(≥12) |
342-366(43-46) |
80 |
|
N48 |
1380-1420(13.8-14.2) |
≥835(≥10.5) |
≥876(≥11) |
366-390(46-49) |
80 |
|
N50 |
1400-1450(14.0-14.5) |
≥835(≥10.0) |
≥880(≥11) |
376-408(47-51) |
80 |
Neodymium magnet shape and application:
|
SHAPE |
APPLICATION |
|
Cylinder NdFeB Magnets Disc NdFeB Magnets |
a) Motors b) Sensors c) Microphones d) Switchboard |
|
Block Neodymium Cube Shape Magnet |
a) VCM b) Printer c) Magnetic chuck d) Switchboard |
|
Ring Neodymium Magnets Bar Magnets |
a) Horn, Trumpet b) Magnetic separation c) Loudspeakers |
|
Segment Neodymium Arc Segment Magnets |
a) Motor b) Wind turbines c) Wind generators d) Switchboard |
|
Customized Size Neodymium Magnets |
a) Motors b) Permanent-magnet machine c) Magnetic device d) Magnetic therapy |
5. Neodymium magnet production flow:
Neodymium magnet melting-Pulverization-Magnetic filed orientation and molding-Sintering-Semi-finished inspection-Precision machining for cutting-Surface treatment-Magnetizing machine-inspection&packing-Ex factory
FAQ for neodymium magnet?
1. Material type and grade required?
2. Size and shape? if available, a sketch or drawing with dimensions and tolerances.
3. Application of the magnets?
4. Max working temperature?
5. How many pcs you want?
6. Delivery with Magnetized or not? Magnetization direction?
7. When you need goods arrived?
8. How to help your project?
Company Information:
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
