|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||200 - 999 Pieces|
|Packaging Details:||Sea Pallet / Air Carton / Express Packaging / Plastic Tube / Wooden Case / standard export package/ all upon your request.|
|Supply Ability:||20000 Piece/Pieces per Day|
|Shape:||Ring Shape||Application:||Industrial Magnet|
|Color:||Bright Silver||Magnetism Direction:||RadialAxial|
|Processing:||Sintered Rare Earth Neodymium Magnet||Size:||Customized Magnet Size|
neodymium iron boron magnets,
ndfeb permanent magnet,
ISO9001 Certificated Neodymium Permanent Magnets
N50 Strong NdFeB Neodymium Magnet Rings
Applications: Sensors,motors,filter automobiles,magnetics holders,loudspeakers,wind generators, medical equipments, etc.
14 years experiences in manufacturing NdFeB magnets
Product,product and so on ndfeb magnet, nedymium iron boron through ISO9001
international quality system authentication.
Neodymium magnet size and shape can customize
Fast delivery and quality guarantee

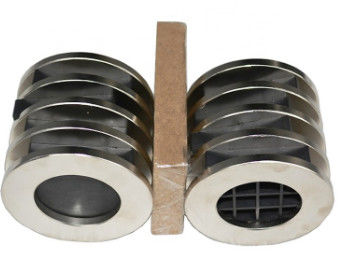

|Produce name||Permanent Neodymium Iron Boron Magnets Radial Ring Shaped ISO9001 Certificated|
|Shape||Ring (Sintered NdFeB magnets shape can customized)|
|Material||NdFeB (Neodymium Iron Boron)|
|Coating||Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.|
|Tolerance in size||+/-0.05mm or +/-0.1mm|
|Magnetization direction||Thickness, Length, axially, diameter, radially, multipolar|
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
|Br(kgs)||N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)|
|Hcj(ka/m)||N35≥955; N52≥876; N30SH≥1353; N33AH≥2785|
|TW(degrees celsius)||N35≤80; N52≤70; N30SH≤150; N33AH≤240|
|Application||NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on|
|MOQ||Samples could be offered|
|Delivery time||3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)|
|Certification||ROHS, SGS, ISO9001|
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Magnetic property of Sintered NdFeB magnet:
Magnetization direction :
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
What’s the payment we accept?
For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.
For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.
What’s the MOQ?
10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.
Sample order is accepted.
What’s the delivery time?
5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.
How can i contact you?
Here is the contact information, please feel free to contact us in anytime, we will try to reply you within 24 hours.
