|Place of Origin:||People's republic of China|
|Certification:||ISO9001:2008; Rohs, Reach, SGS|
|Minimum Order Quantity:||1 PIECE|
|Packaging Details:||Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for sintered permanent NdFeB neodymium mangets, or for customer request.|
|Supply Ability:||10000 Piece/Pieces per Day|
|Coating:||Silver Or Customized||Material:||Sintered Neodymium-Iron-Boron|
|Size:||Customers' Request||Magnetism Direction:||Axial Or Customized|
|Tolerance:||+/-0.05mm Or +/-0.1mm||Processing:||Sintered Permanent Neodymium Magnet|
|Port:||Shenzhen Or Customer' Request|
neodymium iron boron magnets,
ndfeb permanent magnet,
10X2mm neodymium disc magnets

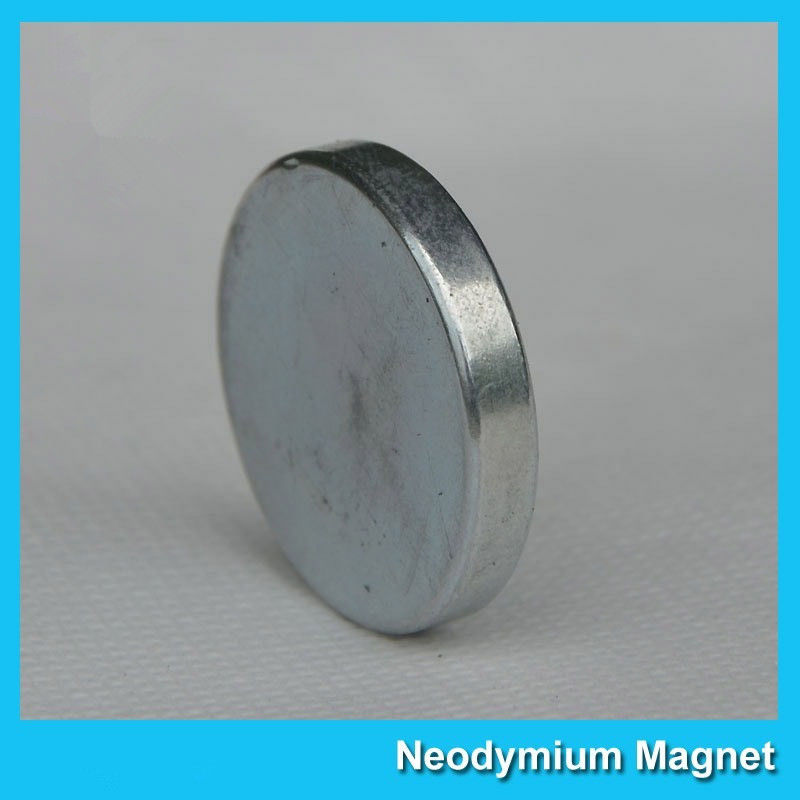

N35 D10X2 Grade Neodymium Permanent Magnets Disc For Magnetic Packaging Box
Neodymium magnet is an alloy magnet made from Nd,Fe,B and other metal elements, which has the high remanence, high coercive force, high energy and high performance/cost ratio
|Product name||N35 D10X2 Grade Neodymium Permanent Magnets Disc For Magnetic Packaging Box|
|Shape||Ring, Disc, Block, Cylinder, Bar, Ball, Arc etc. (Sintered NdFeB magnets shape can customized)|
|Material||NdFeB (Neodymium Iron Boron)|
|Coating||Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.|
|Tolerance in size||+/-0.05mm or +/-0.1mm|
|Magnetization direction||Thickness, Length, axially, diameter, radially, multipolar|
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
|Br(kgs)||N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)|
|Hcj(ka/m)||N35≥955; N52≥876; N30SH≥1353; N33AH≥2785|
|TW(degrees celsius)||N35≤80; N52≤70; N30SH≤150; N33AH≤240|
|Application||NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on|
|MOQ||Samples could be offered|
|Delivery time||3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)|
|Certification||ROHS, SGS, ISO9001|
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
What’s the payment we accept?
For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.
For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.
What’s the MOQ?
10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.
Sample order is accepted.
What’s the delivery time?
5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.
