Home > products > Ferrite Arc Magnet > Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification

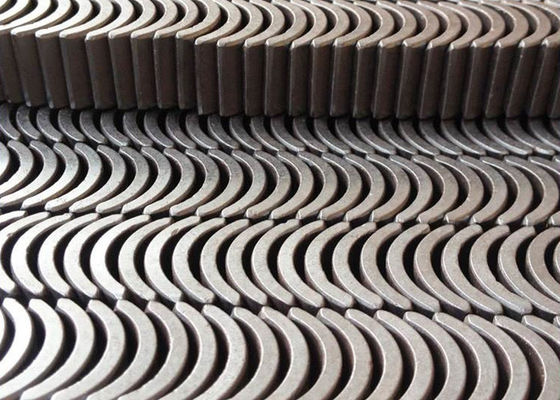

Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: C5/C8/C1/Y30/Y30BH/Y35

Payment & Shipping Terms

Minimum Order Quantity: 1 PIECE

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)

Delivery Time: 5 - 15 work days

Payment Terms: negotiable

Supply Ability: 8000000 Pieces per Month

Get Best Price
High Light:

arc ferrite magnets

,

arc magnets for motors

Type:
Permanent
Composite:
Ferrite Magnet
Shape:
Arc
Application:
Industrial Magnet
Properties:
Anisotropic
Material:
Sro Or Bao And Fe2o3
Size:
Customers' Request
Magnetism Direction:
Axial Or Customized
Tolerance:
+/- 2%
Processing:
Ceramic Processing Technology
Density:
4.8 - 4.9 G/cm3
Grade:
C5 C8 Y30 Y30BH Y33 Y35
Port:
Shenzhen Or Customer' Request
Type:
Permanent
Composite:
Ferrite Magnet
Shape:
Arc
Application:
Industrial Magnet
Properties:
Anisotropic
Material:
Sro Or Bao And Fe2o3
Size:
Customers' Request
Magnetism Direction:
Axial Or Customized
Tolerance:
+/- 2%
Processing:
Ceramic Processing Technology
Density:
4.8 - 4.9 G/cm3
Grade:
C5 C8 Y30 Y30BH Y33 Y35
Port:
Shenzhen Or Customer' Request
Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification

Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification



15 years experiences in manufacturing Ferrite magnet

Arc shape ferrite motor magnet size and shape can customize

Fast delivery and cheap price

Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification



Produce name

Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification

Shape Arc shape (ferrite magnet shape can customized)
Material Sro or Bao and Fe2o3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

C5/C8/C1/Y30/Y30BH/Y35

Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C



Material Grade Specification:



 Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification 0

Applications of Ferrite Magnets:

• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts

Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets



Company Information



Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.

Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.



 Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification 1

Industrial Ferrite Arc Magnet For PMSM Motor ROHS SGS ISO9001 Certification 2



Packaging & Shipping



Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the ferrite magnets.
