Product Details
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35-N52
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for sintered permanent NdFeB neodymium mangets, or for customer request.
Payment Terms: negotiable
Supply Ability: 10000 Piece/Pieces per Day
Type: |
Permanent |
Composite: |
Neodymium Magnet |
Shape: |
Arc Shaped |
Application: |
Motor Magnet |
Coating: |
Silver Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered Permanent Neodymium Magnet |
Port: |
Shenzhen Or Customer' Request |
Type: |
Permanent |
Composite: |
Neodymium Magnet |
Shape: |
Arc Shaped |
Application: |
Motor Magnet |
Coating: |
Silver Or Customized |
Material: |
Sintered Neodymium-Iron-Boron |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/-0.05mm Or +/-0.1mm |
Processing: |
Sintered Permanent Neodymium Magnet |
Port: |
Shenzhen Or Customer' Request |

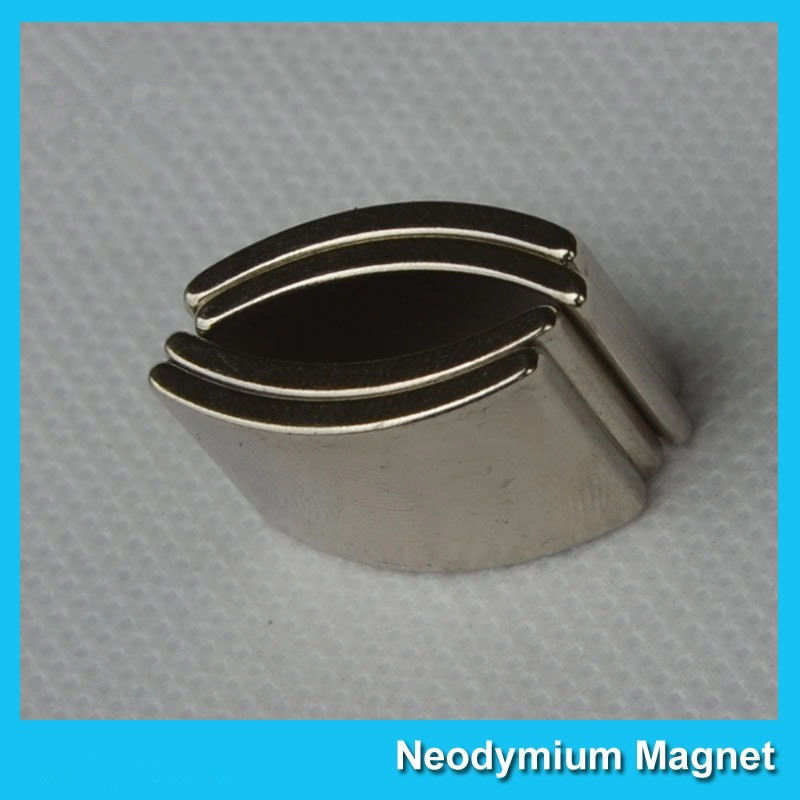

Arc Shaped Neodymium Permanent Magnet High Strength Customized Size
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
| Product name |
Arc Shaped Neodymium Permanent Magnet High Strength Customized Size |
| Shape | Arc shaped (Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
Plating Characteristics:
Magnetization direction:
More Shapes:
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
Certification:
Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.
Or for customer request.
What’s the payment we accept?
For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.
For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.
What’s the MOQ?
10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.
Sample order is accepted.
What’s the delivery time?
5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.
How can i contact you?
Here is the contact information, please feel free to contact us in anytime, we will try to reply you within 24 hours.
