Y28 Y30 Y33 Y35 R13.15*r8.8*H21mm Arc Motor Ferrite Magnet Free Energy

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: C-805
Minimum Order Quantity: 3 PIECES
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 50000 Pieces per Day
Detail Information
Type: Permanent Rare Earth Composite: Ferrite Magnet
Shape: Arc Curve Application: Motor Magnet
Product Name: Ferrite Magnet Material: Sro Or Bao And Fe2o3
Size: R13.15*r8.8*H21mm Magnetism Direction: Axial Or Customized
Tolerance: +/- 2% Processing: Wet Pressing
Grade: C5 / Y30 Port: Shenzhen Or Hong Kong
High Light:

arc magnets for motors


ceramic motor arc magnets

Product Description

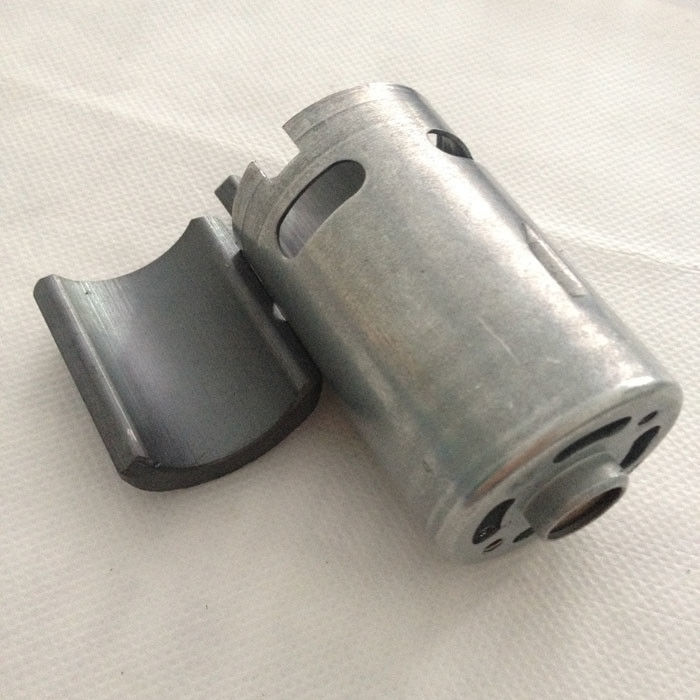

Y28 Y30 Y33 Y35 R13.15*r8.8*H21mm Arc Motor Ferrite Magnet Free Energy


Ferrite magnets are sintered permanent magnets composed of Barium or Strontium Ferrite.

Due to their low cost, Ferrite magnets enjoy a very wide range of applications, from motors and loudspeakers to toys and crafts, and are the most widely used permanent magnets today.

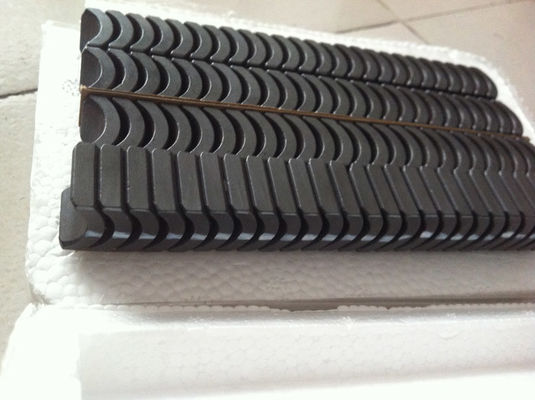

Grade:C5 / Y30  Size: R13.15*r8.8*H21mm  Shape:Arc Degree:135C  Magnetic direction: Pair Ferrite magnet

Grade:Y33  Size: R16.9*r11.9*H37mm  Shape:Arc  Degree:135C   Magnetic direction: Pair  Ferrite magnet

Grade:Y25  Size: R13.15*r8.9*H15mm  Shape:Arc  Degree:135C   Magnetic direction: Pair  Ferrite magnet


1. Ferrite magnet description:



Produce name

Y28 Y30 Y33 Y35 R13.15*r8.8*H21mm Arc Motor Ferrite Magnet Free Energy

Shape Arc (Ferrite magnet size and shape can be customized)
Material Sro or Bao and Fe2o3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar

Y25, Y30, Y33, Y35 etc  C1/C5/C8/C10

Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C



2.Magnetic properties and grade:


 Y28 Y30 Y33 Y35 R13.15*r8.8*H21mm Arc Motor Ferrite Magnet Free Energy 0



3. Our Ferrite Magnet  Advantages:


1. High Performance :

 Our Ferrite magnet for variable frequency compressor,motor, rotor..

2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.

3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.


Y28 Y30 Y33 Y35 R13.15*r8.8*H21mm Arc Motor Ferrite Magnet Free Energy 1



4. Ferrite magnet production flow:


Neodymium magnet melting-Pulverization-Magnetic filed orientation and molding-Sintering-Semi-finished inspection-Precision machining for cutting-Surface treatment-Magnetizing machine-inspection&packing-Ex factory


Y28 Y30 Y33 Y35 R13.15*r8.8*H21mm Arc Motor Ferrite Magnet Free Energy 2


5.FAQ for Ferrite magnet?


1. Material type and grade required?
2. Size and shape? if available, a sketch or drawing with dimensions and tolerances.
3. Application of the magnets?
4. Max working temperature?
5. How many pcs you want?
6. Delivery with Magnetized or not? Magnetization direction?
7. When you need goods arrived?
8. How to help your project?



6.Our Services:


A: What’s the payment we accept?

For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.

For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.


B: What’s the MOQ?

10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.

Sample order is accepted.


C: What’s the delivery time?

5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.


D: How can i contact you?

Here is the contact information, please feel free to contact us in anytime, we will try to reply you within 24 hours.
