Product Details
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: Y30 Y33 Y35
Payment & Shipping Terms
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 5 to 10 work days
Payment Terms: negotiable
Supply Ability: 50000 pieces per work day
Type: |
Permanent |
Composite: |
Ferrite Magnet |
Shape: |
Cylinder |
Application: |
Industrial Magnet |
Material: |
Sro Or Bao And Fe2o3 |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/- 2% |
Processing: |
Ceramic Processing Technology |
Density: |
4.8 - 4.9 G/cm3 |
Grade: |
Y30 Y30BH |
Properities: |
Anisotropic |
Port: |
Shenzhen Or Hong Kong |
Type: |
Permanent |
Composite: |
Ferrite Magnet |
Shape: |
Cylinder |
Application: |
Industrial Magnet |
Material: |
Sro Or Bao And Fe2o3 |
Size: |
Customers' Request |
Magnetism Direction: |
Axial Or Customized |
Tolerance: |
+/- 2% |
Processing: |
Ceramic Processing Technology |
Density: |
4.8 - 4.9 G/cm3 |
Grade: |
Y30 Y30BH |
Properities: |
Anisotropic |
Port: |
Shenzhen Or Hong Kong |

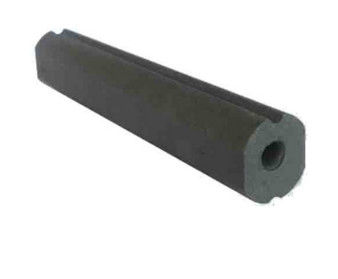

Permanent Ferrite Bar Magnets Long Life Ferrite Rod Magnet For Welding Pipe
14 years experiences in manufacturing Ferrite magnet
ferrite magnet size and shape can be customized
Fast delivery and cheap price
| Produce name |
Permanent Ferrite Bar Magnets Long Life Ferrite Rod Magnet For Welding Pipe |
| Shape | Cylinder (ferrite magnet shape can customized) |
| Material | Sro or Bao and Fe2o3 |
| Coating | No |
| Tolerance in size | Length and Width: +/- 2%, Height: +/- 0.1 |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
Y25, Y30, Y33, Y35 |
| Process | Sintered Ceramic processing technology |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Application | Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc |
| Certification | ROHS, SGS, ISO9001 |
| Characteristics | Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized |
| Payment | T/T, western Union, Paypal, L/C |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
More Shapes:
Applications of Ferrite Magnets:
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
