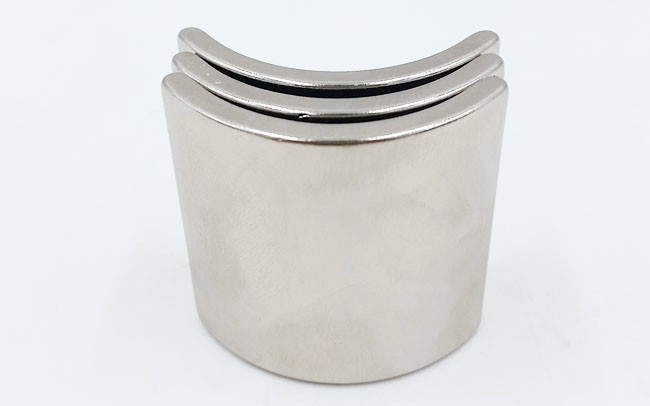

NdFeB DC Motor Arc Magnets Powerful Permanent Magnet For Spur Gearboxes

Brand Name:	VISION
Model Number:	N35-N52
MOQ:	3 pieces
Price:	Negotiable
Delivery Time:	5 - 10 work days
Payment Terms:	negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

People's republic of China

Certification:

ISO9001:2008; Rohs, Reach, SGS

Type:

Permanent

Composite:

NdFeB Magnet

Shape:

Arc

Application:

PMDC Motor Magnet

Usage:

Spur Gearboxes Magnet

Material:

Sintered Neodymium-Iron-Boron

Size:

Customers' Request

Magnetism Direction:

Thickness Or Customized

Tolerance:

+/-0.05mm Or +/-0.1mm

Processing:

Sintered Permanent Neodymium Magnet

Coating:

Customized

Port:

Shenzhen Or Hong Kong

Packaging Details:

1 piece

Supply Ability:

10000 Pieces per Day

Highlight:

strong neodymium magnets

high strength neodymium magnets

Product Description

NdFeB DC Motor Arc Magnets Powerful Permanent Magnet For Spur Gearboxes

Neodymium magnet, also named NdFeB magnet, Neo magnet & Nd magnet, is mainly made of Neodymium, Iron and Boron with strongest power among all magnetic materials. Neodymium magnet can be easily shaped with high precision, widely used to motors, rotors, wind turbines, wind generators, sensors, loudspeakers, cars, mobile phones, home appliances, medical equipment, filters, and so on.

Our Neodymium Magnets Advantage:

1. High Performance :

Our neodymium magnet for variable frequency compressor,motor, rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.

Product Description

Product	NdFeB DC Motor Arc Magnets Powerful Permanent Magnet For Spur Gearboxes
Shape	Arc
Material	NdFeB (Neodymium Iron Boron)
Coating	Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size	+/-0.05mm or +/-0.1mm
Magnetization direction	Thickness, Length, axially, diameter, radially, multipolar
Grade	N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
Br(kgs)	N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m)	N35≥955; N52≥876; N30SH≥1353; N33AH≥2785
TW(degrees celsius)	N35≤80; N52≤70; N30SH≤150; N33AH≤240
Application	NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ	Samples could be offered
Delivery time	3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification	ROHS, SGS, ISO9001

In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

Material type and grade required
Size and shape, if available, a sketch or drawing with dimensions and tolerances.
Coating of the magnets
Application of the magnets
Max working temperature
Quantity required
Magnetized or not? Magnetization direction?

Plating Characteristics:

Magnetization direction:

More Shapes:

Permanent NdFeB Neodymium magnets widely application:

1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone

2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch

3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor

4: Mechanical equipment: magnetic separator, magnetic holder

5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
