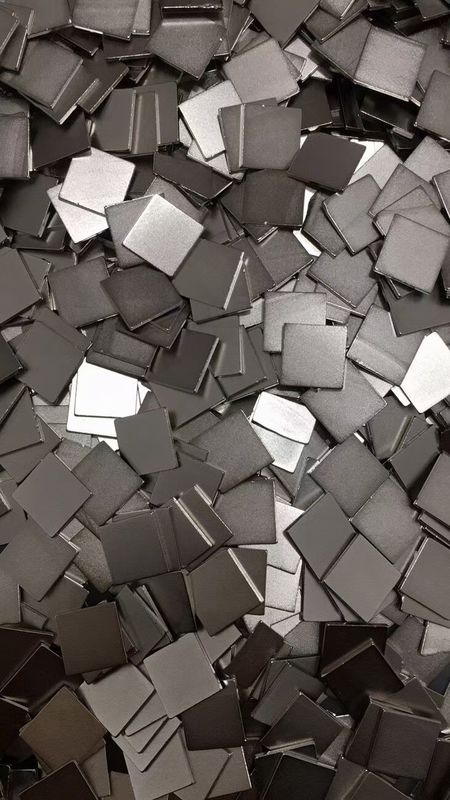

Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: N35-N52

Payment & Shipping Terms

Minimum Order Quantity: 1 PIECE

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)

Delivery Time: 5 - 15 work days

Payment Terms: negotiable

Supply Ability: 10000 Pieces per Day

Get Best Price
High Light:

strong neodymium magnets

,

high strength neodymium magnets

Type:
Permanent
Composite:
Neodymium Magnet
Application:
Industrial Magnet
Shape:
Bar
Coating:
Silver Or Customized
Material:
Sintered Neodymium-Iron-Boron
Size:
Customers' Request
Magnetism Direction:
Thickness
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Port:
Shenzhen Or Customer' Request
Type:
Permanent
Composite:
Neodymium Magnet
Application:
Industrial Magnet
Shape:
Bar
Coating:
Silver Or Customized
Material:
Sintered Neodymium-Iron-Boron
Size:
Customers' Request
Magnetism Direction:
Thickness
Tolerance:
+/-0.05mm Or +/-0.1mm
Processing:
Sintered Permanent Neodymium Magnet
Port:
Shenzhen Or Customer' Request
Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size

Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size


Product Info

Neodymium (NdFeB) permanent magnet is composed of neodymium, iron, boron and a few transition metals. It has many advantages like high coercive force, high energy, high performance/ cost ratio and can be easily formed into various shapes and widely used in many fields such as aviation, electronics, instruments, meters, DC motors, Liner motors, MRI, medical and health products. It is the third generation of rare earth permanent magnet and at the same time the most powerful and advanced commercialized permanent magnet today.



Neodymium magnet raw magnetrials are widely used in industrial field,such as speaker,louder speaker,sensor,motor,alternator ect;And also it is popular in ladies bags,purses,shoes,crafts and jewelry ect.

Product Description
Product name

Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size

Shape Bar neodymium magnet shaped (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955;  N52≥876;   N30SH≥1353;   N33AH≥2785
TW(degrees celsius)  N35≤80;    N52≤70;   N30SH≤150;   N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001



In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

Plating Characteristics:

Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size 0

Magnetization direction:

Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size 1



Permanent NdFeB Neodymium magnets widely application:



1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone

2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch

3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor

4: Mechanical equipment: magnetic separator, magnetic holder

5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments



Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size 2

Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.

Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.



 Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size 3

Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size 4



Certification:

 Thin Small Neodymium Rare Earth Bar Magnets High Power Rust - Proof Customized Size 5

Our Services

What’s the payment we accept?

For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.

For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.



What’s the MOQ?

10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.

Sample order is accepted.



What’s the delivery time?

5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.



How can i contact you?

Here is the contact information, please feel free to contact us in anytime, we will try to reply you within 24 hours.
