N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator

Product Details

Place of Origin: People's republic of China

Brand Name: VISION

Certification: ISO9001:2008; Rohs, Reach, SGS

Model Number: Permanent

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: Negotiable

Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)

Delivery Time: 10 ~ 14 work days

Payment Terms: negotiable

Supply Ability: 50000 Pieces per Week

Get Best Price
Highlight:

neodymium rare earth magnets

,

neodymium iron boron magnets

Application:
Industrial Motor Magnet
Material:
NdFeB Neodymium Iron Boron
Pull Force:
Tested By Gauss Meter
HS Code:
8505 11
Certificates:
ISO9001, ROHS, REACH, MSDS, SGS
Testing Method:
Salt Spray Testing 24~72 Hours
Color:
Nickel White Bright Silver
Grade:
N35 - N52 SH EH
Application:
Industrial Motor Magnet
Material:
NdFeB Neodymium Iron Boron
Pull Force:
Tested By Gauss Meter
HS Code:
8505 11
Certificates:
ISO9001, ROHS, REACH, MSDS, SGS
Testing Method:
Salt Spray Testing 24~72 Hours
Color:
Nickel White Bright Silver
Grade:
N35 - N52 SH EH
N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator

N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator



Product Description



Product name N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator

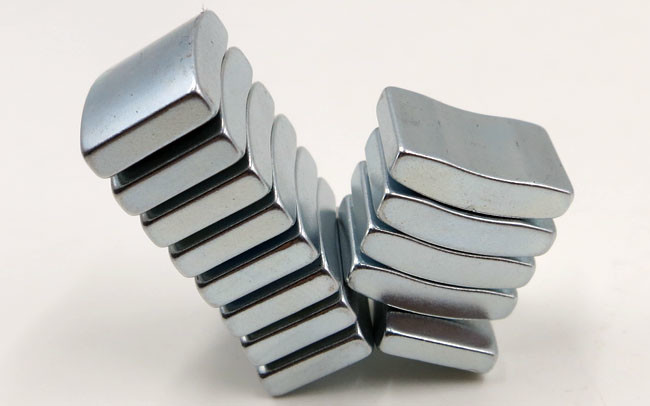

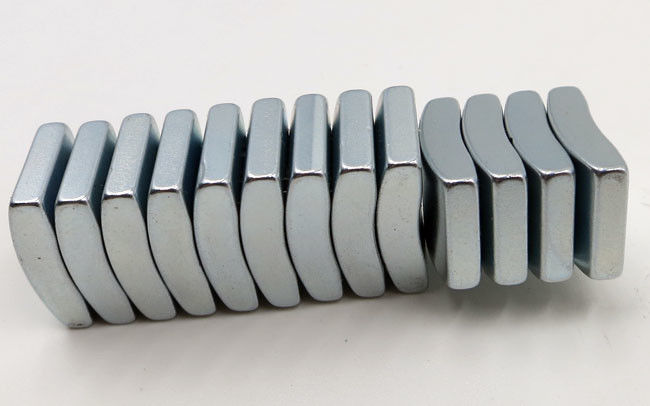

Shape Arc shaped (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH
Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955; N52≥876; N30SH≥1353; N33AH≥2785
TW(degrees celsius) N35≤80; N52≤70; N30SH≤150; N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001



Uses for our Rare Earth Arc Magnets:


These arc magnets have specialized use in generally industrial applications. Arc Neodymium Magnets and the field they emit are used in DC electric motors and generators to create rotational movement by interacting with electrical currents that cause their alternating poles to repel and attract. This energy generating principle is utilized in battery powered motors of power tools, white goods, starter motors, turbines and just about anything that converts DC electricity into mechanical power or movement. The power created is both constant and variable and instigated by adjusting the flow of electrical current. Cordless tools and equipment have increased in popularity, and improved battery technology using Lithium-ion and expensive but efficient brushless motors have enhanced their performance and battery life while greatly reducing recharge times. Including rotor, Wind Turbine Generator, DC motor, AC motor, servo motor, stepper motor, Synchronous Motor, Elevator Motor, Vibration Motor, and Magnetic Coupling in motor industry.

Segment Neodymium Magnets, Rare Earth magnet NdFeB Arc Permanent Magnets, Super Strong Magnet, Powerful Motor and Generator Magnets, Neodymium-Iron-Boron Rotor China Factory, Manufacturer and Supplier.

N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator 0

N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator 1



In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Coating of the magnets
  4. Application of the magnets
  5. Max working temperature
  6. Quantity required
  7. Magnetized or not? Magnetization direction?

N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator 2

Surface Coating Testing

Machine Name: Salt Spray Test Machine

Brand: JK-60
To test magnet surface coating the alibity of corrosion resistant. Usually 24 hours or even longer on request.



N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator 3

N45H Neodymium Motor Permanent Magnet for Wind Turbines Generator 4
