Free energy arc shape hard ceramic motor ferrite magnet 130 131

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ROHS
Model Number: 130 131
Minimum Order Quantity: 3 PIECES
Price: Negotiable
Packaging Details: 36*25*30CM, caron box, 1120 pieces per box
Payment Terms: negotiable
Supply Ability: 1300000 pieces per month
Detail Information
Type: Permanent Composite: Ferrite Magnet
Application: Industrial Motor Shape: Arc
Color: Bright Silver Size: Standard
Coating: Ni-Cu-Ni
High Light:

arc ferrite magnets


ceramic motor arc magnets

Product Description

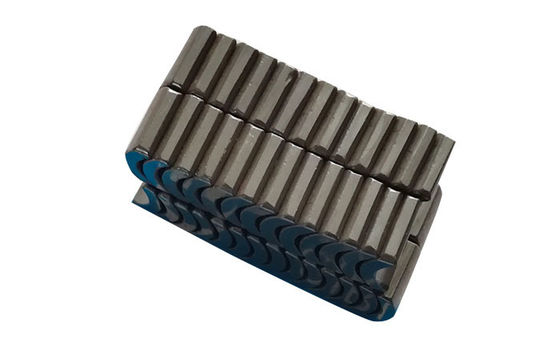

Free energy arc shape hard ceramic motor ferrite magnet 130 131


Chord width:13.9±0.3 mm
Axial height:12/13±0.35 mm
Arch height:5.6±0.3mm
Central magnetic force:750±30Gauss
Central angle:110°
Interial Radius:6.8±0.1mm
Exterial Radius:9.55±0.1mm

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: Vision
Model Number: C5/C8/C10/Y30/Y30BH/Y35/Y40
Type: Permanent
Composite: Ferrite Magnet
Shape: Arc shape
Application: Industrial Magnet
Product Name: C5 C8 C10 Y40 free energy arc shape hard ceramic motor ferrite magnet
Material: Sro or Bao and Fe2o3
Size: Customers' Request
Magnetism direction: Magnetized in pairs
Tolerance: +/- 1%
Processing: Ceramic processing technology
Certification: ISO9001:2008; Rohs, Reach, SGS
Density: 4.8 - 4.9 G/cm3
Grade: C5 C8 C10 Y30 Y30BH Y33 Y35 Y40
Technology: Mould ferrite magne
We have hunders mould of arc shape ferrite magnet, use for different kind of motors.
Please send the drawing photo when send the request, so we can give the accurate quotation in time.
Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. produces Y30, Y30BH, Y33, Y35, Y38, Y40, Y45, Y48 series of permanent magnet ferrite magnetic tile products, which has high magnetic performance, stable chemical performance, high and low temperature resistance and other characteristics.
 Free energy arc shape hard ceramic motor ferrite magnet 130 131 0
Our Arc shape ferrite magnets are widely used in the field of permanent magnet motor cars, energy-saving electrical appliances, industrial control motors, power tools, magnetic drive and sensors.

1: Custom any size and shape ferrite magnet
2: Free design and free samples service
3: 100% payment protection and USD 80000 warranty trade assurance
4: 100% production quality protection with real material
5: 100% on time shippment protection
6: 14 years experience in manufacturing ferrite magnet


Product Description


There are mainly two types of ferrite magnets, Barium ferrite (BaO.6Fe2O3) and Strontium ferrite (SrO.6Fe2O3). Compared with other permanent magnets, sintered ferrite magnet is cheap. It is most suitable for most sensitive, but need not very high performance applicaitons. As this is a non-metal magnets, it is the ideal magnets for applications that require non-rusty magnets in humit envirument. Sintered ferrite magnets are widely used in many different applications, such as motors, cars, magnetic selection loudspeakers, and many special applications.
 Free energy arc shape hard ceramic motor ferrite magnet 130 131 1
Ferrite magnet widely application:
Applications of Ferrite Magnets:
• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Attributes of ferrite Magnet:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets
