| Place of Origin: | People's republic of China |
|---|---|
| Brand Name: | VISION |
| Certification: | ISO9001:2008; Rohs, Reach, SGS |
| Model Number: | N30 - N52 |
| Minimum Order Quantity: | 3 PIECES |
| Price: | Negotiable |
| Packaging Details: | Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for ferrite ring magnet |
| Delivery Time: | 5- 15 work days |
| Payment Terms: | negotiable |
| Supply Ability: | 50000 Pieces per Day |
| Name: | Custom Neodymium Magnets | Shape: | Disc |
|---|---|---|---|
| Application: | Packaging | Size: | Customers' Request |
| Magnetism Direction: | Axially | Tolerance: | +/- 0.05 |
| Processing: | Ceramic Processing Technology | Grade: | N42 |

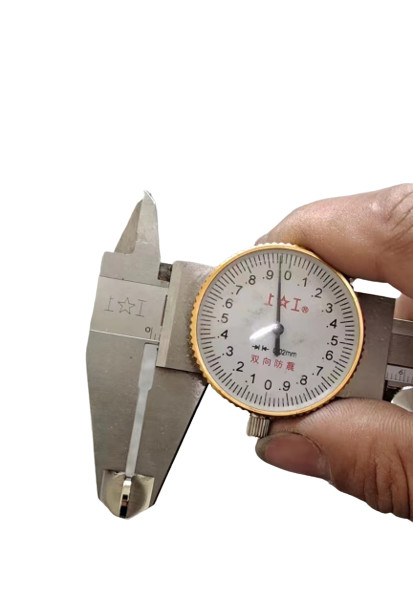

NdFeB Disc D10x2 mm N42 Magnet One Side Sticking With 3M Adhesive Tape
We can produce the NdFeB Permanent Neodymium Magnets in different sizes, different shapes, different grades (strengths and temperature ratings), different coatings/finishings and different magnetizations as part of our custom magnet (made-to-order) service.
| Produce name | NdFeB Disc D10x2 mm N42 Magnet One Side Sticking With 3M Adhesive Tape |
| Shape | Disc (Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade | N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
1, Shape and Size: Disc, Cylinder, Ring, Rectangle, Countersunk, Segment, Sphere, Special Shapes etc, all sizes or shapes can be customized.
2, Coating: Nickel, Zinc, Black Epoxy, Au (Golden) and so on.
3. Direction of Magnetisation: Axially, Radially, Thickness etc.
4. Application of Neodymium Magnet: Neodymium Magnets are widely used in various fields, such as motors, speakers, electric generators, separators, constructions, toys, holdings etc.
Magnetization direction:
Thickness Magnetized
Axially Magnetized
Diametrally Magnetized
Multi-poles magnetized
Radial Magnetized
Customzied specific requirements magnetized
Permanent NdFeB Neodymium magnets widely application:
1: Electro-acoustic: loudspeaker, headphone, earphone, stage sound device, alarm, microphone
2: Electric products: permanent magnetic actuator, vacuum circuit breaker, magnetic relay, watt-hour meter, water meter, sensor, reed switch
3: Motor areas: VCM, DVD-ROM, generator, electromotor, DC motor, linear motor
4: Mechanical equipment: magnetic separator, magnetic holder
5: Health care: nuclear magnetic resonance spectrometer, medical apparatus and instruments
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd., is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.
Or for customer request.
