Strong Block Shaped Ceramic Ferrite Magnets C5 C8 Grade For Industrial Use

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: C5 C8 C10 Y30 Y30BH Y35 Y40
Minimum Order Quantity: 1 or 10 PIECES
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for C5 Grade segment block shape ferrite magnet
Payment Terms: negotiable
Supply Ability: 5000000 Pieces per Month
Detail Information
Type: Permanent Composite: Ferrite Magnet
Shape: Block Application: Industrial Magnet
Properities: Anisotropic Material: Sro Or Bao And Fe2o3
Size: Customers' Request Magnetism Direction: Magnetized In Pairs
Tolerance: +/- 1% Processing: Ceramic Processing Technology
Density: 4.8 - 4.9 G/cm3 Grade: C5 C8 C10 Y30 Y30BH Y33 Y35 Y40
Technology: Mould Ferrite Magnet Port: Shenzhen Or Customer' Request
High Light:

barium ferrite magnet

,

strontium ferrite magnet


Product Description

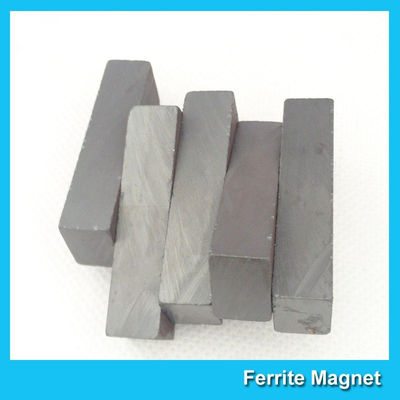

Strong Block Shaped Ceramic Ferrite Magnets C5 C8 Grade For Industrial Use



Ceramic, also known as ferrite, magnets are made of a composite of iron oxide and barium carbonate (BaCo3) or strontium carbonate (SrCO3).



1: Custom any size and shape ferrite magnet
2: Free design and free samples service
3: 100% payment protection and USD 80000 warranty trade assurance
4: 100% production quality protection with real material
5: 100% on time shippment protection
6: 15 years experience in manufacturing ferrite magnet



There are mainly two types of ferrite magnets, Barium ferrite (BaO.6Fe2O3) and Strontium ferrite (SrO.6Fe2O3). Compared with other permanent magnets, sintered ferrite magnet is cheap. It is most suitable for most sensitive, but need not very high performance applicaitons. As this is a non-metal magnets, it is the ideal magnets for applications that require non-rusty magnets in humit envirument. Sintered ferrite magnets are widely used in many different applications, such as motors, cars, magnetic selection loudspeakers, and many special applications.



Product Description
Produce name

Strong Block Shaped Ceramic Ferrite Magnets C5 C8 Grade For Industrial Use

Shape Block shape (ferrite ceramic magnet shape can customized)
Material Sro or Bao and Fe2o3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

C5/C8/C1/Y30/Y30BH/Y35

Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C



 Strong Block Shaped Ceramic Ferrite Magnets C5 C8 Grade For Industrial Use 0

Applications of Ferrite Magnets:

• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts

Attributes of ferrite Magnet:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets



Company Introduce and Certification:



Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.



Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.


For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.

Strong Block Shaped Ceramic Ferrite Magnets C5 C8 Grade For Industrial Use 1

Strong Block Shaped Ceramic Ferrite Magnets C5 C8 Grade For Industrial Use 2
