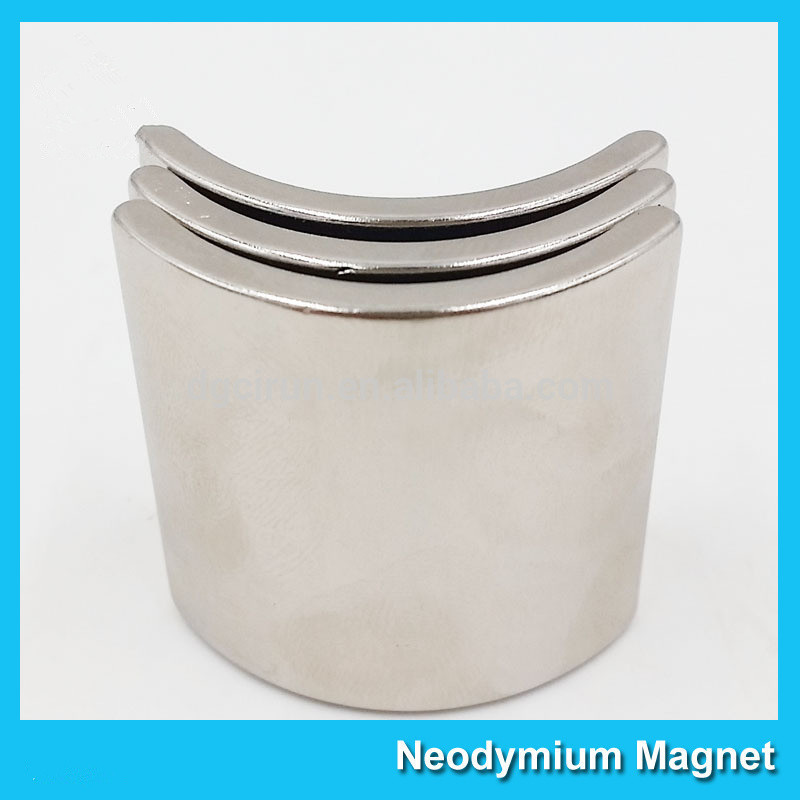

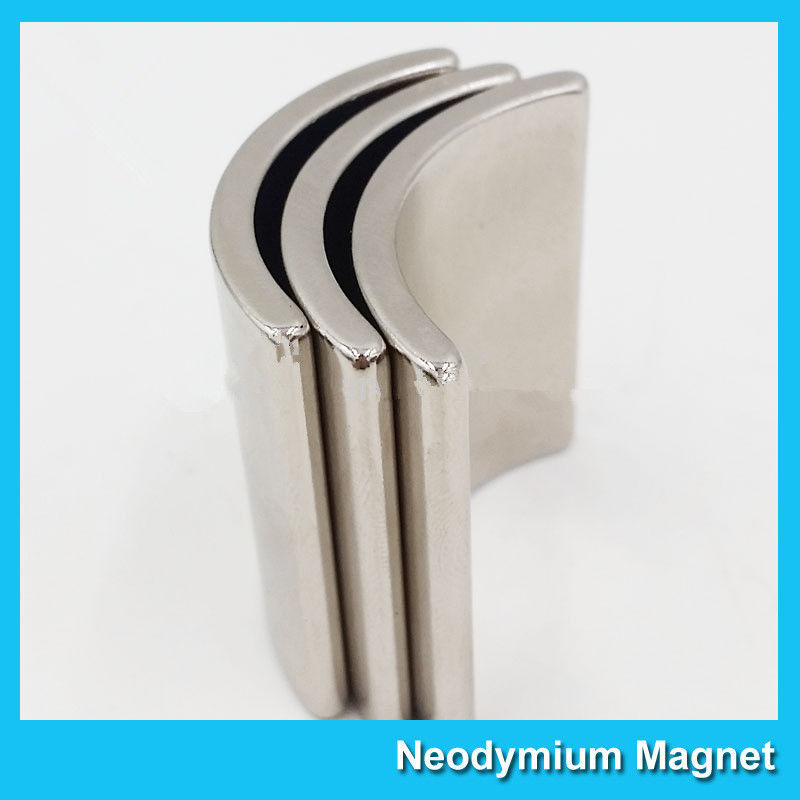

Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: N35-N52
Minimum Order Quantity: 1 or 10 PIECES
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for N35-N52 Custom Arc shape free energy neodymium permanent magnet generator magnet motor
Payment Terms: negotiable
Supply Ability: 6000000 Piece/Pieces per Month
Detail Information
Type: Permanent Composite: Neodymium Magnet
Shape: Arc Shaped Application: Moto Magnet
Product Name: Arc Shape Free Energy Permanent Neodymium Magnet Generator Motor Coating: Zinc Or Customized
Material: Sintered Neodymium-Iron-Boron Size: Customers' Request
Magnetism Direction: Axial Or Customized Tolerance: +/-0.05mm Or +/-0.1mm
Processing: Sintered Port: Shenzhen Or Customer' Request
High Light:

neodymium arc segment magnets

,

curved neodymium magnets

,

neodymium arc magnets for generator


Product Description

Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor



Widely use in BLDC, Brushless and other industrial motors, generators, wind turbines.



14 years experience in manufacturing neodymium magnets

Custom different size and shape of neodymium magnets

Fast delivery and competitive price

24 hours Service



Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor



Product Description
Product name

Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor

Shape Arc shaped (Sintered NdFeB magnets shape can customized)
Material NdFeB (Neodymium Iron Boron)
Coating Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc.
Tolerance in size +/-0.05mm or +/-0.1mm
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH

Br(kgs) N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2)
Hcj(ka/m) N35≥955;  N52≥876;   N30SH≥1353;   N33AH≥2785
TW(degrees celsius)  N35≤80;    N52≤70;   N30SH≤150;   N33AH≤240
Application NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Certification ROHS, SGS, ISO9001



Magnetic Properties and Grade:



Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor 0

Magnetization direction:

  • Thickness Magnetized
  • Axially Magnetized
  • Diametrally Magnetized
  • Multi-poles magnetized
  • Radial Magnetized
  • Customzied specific requirements magnetized

Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor 1



Neodymium Magnets Shape and Application:



Shape Application

Cylinder NdFeB Magnets

Disc NdFeB Magnets

a) Motors

b) Sensors

c) Microphones

d) Switchboard

Block Neodymium

Cube Shape Magnet

a) VCM

b) Printer

c) Magnetic chuck

d) Switchboard

Ring Neodymium Magnets

Bar Magnets

a) Horn, Trumpet

b) Magnetic separation

c) Loudspeakers

Segment Neodymium

Arc Segment Magnets

a) Motor

b) Wind turbines

c) Wind generators

d) Switchboard

Customized Size

Neodymium Magnets

a) Motors

b) Permanent-magnet machine

c) Magnetic device

d) Magnetic therapy



FAQ for Permanent neodymium magnet?

1. Material type and grade required?
2. Size and shape? if available, a sketch or drawing with dimensions and tolerances.
3. Application of the magnets?
4. Max working temperature?
5. How many pcs you want?
6. Delivery with Magnetized or not? Magnetization direction?
7. When you need goods arrived?
8. How to help your project?


Our Neodymium Magnets Advantage:

1. High Performance :

 Our neodymium magnet for variable frequency compressor,motor, rotor..
2. High Consistancy :
Our neodymium, (Br) and (Hcj) are much higher than 1.63. The consistency of the surface magnetic field and magnetic flux can be controlled at +/-0.05%.
3. High Working Temperature :
Our neodymium magnet can satisfy the working temperature requirements with excellent temperature resistance. can be in most applications.



 Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor 2



Neodymium magnet production flow:



Neodymium magnet melting-Pulverization-Magnetic filed orientation and molding-Sintering-Semi-finished inspection-Precision machining for cutting-Surface treatment-Magnetizing machine-inspection&packing-Ex factory



Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor 3





Company Information

Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.



Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.


For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.



 Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor 4

Permanent N35-N52 Neodymium Arc Magnets Free Energy For Generator And Motor 5



Packaging & Shipping



Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.

Or for customer request.





FAQ:



What’s the payment we accept?

For small order: T/T, Western Union, Paypal, Escrow. Need full payment in advance.

For big order: T/T, L/C, D/P, D/A, Western Union, Escrow. 30% deposit in advance, 70% payment before shipping.



What’s the MOQ?

10pcs, 100pcs, 500pcs, 50000pcs, 500000pcs etc, depend to the different size, item, design and process.

Sample order is accepted.



What’s the delivery time?

5 to 30 days, according to the quantity, stock information and your special request, will give the accurate delivery time when you contact us.
