| Place of Origin: | People's republic of China |
|---|---|
| Brand Name: | VISION |
| Certification: | ISO9001:2008; Rohs, Reach, SGS |
| Model Number: | N35-N52 |
| Minimum Order Quantity: | 1 or 10 PIECES |
| Price: | Negotiable |
| Packaging Details: | Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for permanent magnet motor wind generator/magnet neodymium wind generator |
| Delivery Time: | 5 - 15 work days |
| Payment Terms: | negotiable |
| Supply Ability: | 10000 Pieces per Day |
| Type: | Permanent | Composite: | Neodymium Magnet |
|---|---|---|---|
| Shape: | Arc Shaped | Application: | Motor Magnet |
| Coating: | NiCuNi Or Customized | Material: | Sintered Neodymium-Iron-Boron |
| Size: | Customers' Request | Magnetism Direction: | Axial Or Customized |
| Tolerance: | +/-0.05mm Or +/-0.1mm | Processing: | Sintered |
| Product Name: | Permanent Magnet Motor Wind Generator/magnet Neodymium Wind Generator | Port: | Shenzhen Or Customer' Request |
| High Light: | motor neodymium magnet,neodymium permanent magnet for motor,n38h grade arc neodymium magnets |
||

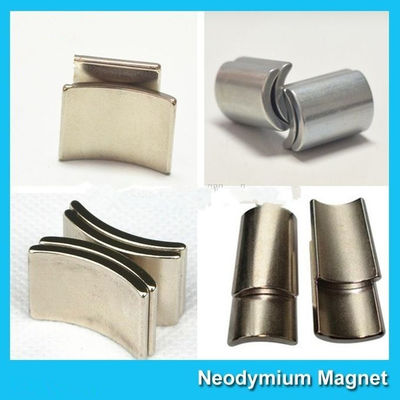

Arc Shaped Neodymium Motor N38H Grade Wind Generator NdFeb Magnet
NdFeB magnets are widely used in high performance stepper, DC motors, servo motors, and linear motors, actuators, loudspeakers, headphones, electronic instruments, switches, relays, magnetic imaging for medical and geophysical applications, holding systems, magnetic bearings, magnetic couplings, hard disk drives, magnetic separator, magnetic lifter, other magnetic tools and so on
a. High coercive force, the max operation temp is up to 200 degree centigrade or 380 curie temperature. N
b. High quality with competitive prices.
c. Strong surface gauss and attractive force than SmCo, AlNiCo and Ferrite.
| Product name |
Arc Shaped Neodymium Motor N38H Grade Wind Generator NdFeb Magnet |
| Shape | Arc shaped (Sintered NdFeB magnets shape can customized) |
| Material | NdFeB (Neodymium Iron Boron) |
| Coating | Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper etc. |
| Tolerance in size | +/-0.05mm or +/-0.1mm |
| Magnetization direction | Thickness, Length, axially, diameter, radially, multipolar |
| Grade |
N33-N52;N33M-N50M;N33H-N48H; N30SH-N45SH;N30UH-N40UH; N28EH-N38EH,N28AH-N35AH |
| Br(kgs) | N35(11.8-12.2);N52(14.4-14.8);N35M(11.8-12.2);N30H(10.8-11.3); N30SH(10.8-11.2); N30UH(10.8-11.2); U30EH(10.8-11.2) |
| Hcj(ka/m) | N35≥955; N52≥876; N30SH≥1353; N33AH≥2785 |
| TW(degrees celsius) | N35≤80; N52≤70; N30SH≤150; N33AH≤240 |
| Application | NdFeB neodymium rare earth permanent magnets are widely use in many different area, such as motors, sensor, speaker, rotors, alarm, microphone, wind turbines/wind generators, magnetic hooks, magnetic holder, filters automobiles and so on |
| MOQ | Samples could be offered |
| Delivery time | 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information) |
| Certification | ROHS, SGS, ISO9001 |
In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:
Plating Characteristics:
More Shapes:
Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.
Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.
Certification:
Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.
Or for customer request.
