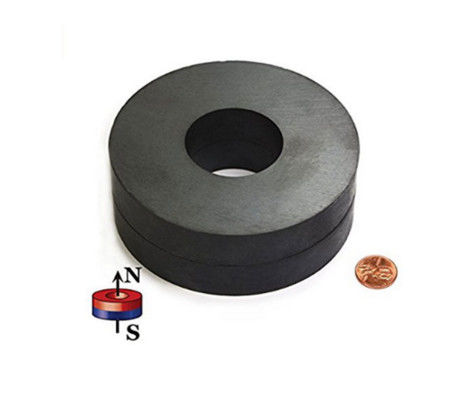

Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach, SGS
Model Number: Y25-Y35
Minimum Order Quantity: 1 or 10 PIECES
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box)
Delivery Time: 5 - 15 work days
Payment Terms: negotiable
Supply Ability: 100000 Pieces per Day
Detail Information
Type: Permanent Properities: Anisotropic
Shape: Ring Application: Speaker Magnet
Material: Sro Or Bao And Fe2o3 Size: Customers' Request
Magnetism Direction: Axial Or Customized Tolerance: +/- 2%
Processing: Ceramic Processing Technology Port: Shenzhen Or Customer' Request
High Light:

ceramic round magnets

,

ring permanent magnet


Product Description

Custom Strontium / Barium Ferrite Magnet Ring Y25 Y30 Y33 Y35 Multipurpose Use


There are mainly two types of ferrite magnets, Barium ferrite (BaO.6Fe2O3) and Strontium ferrite (SrO.6Fe2O3). Compared with other permanent magnets, sintered ferrite magnet is cheap. It is most suitable for most sensitive, but need not very high performance applicaitons. As this is a non-metal magnets, it is the ideal magnets for applications that require non-rusty magnets in humit envirument. Sintered ferrite magnets are widely used in many different applications, such as motors, cars, magnetic selection loudspeakers, and many special applications.



Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 0

Produce name Custom Strontium / Barium Ferrite Magnet Ring Y25 Y30 Y33 Y35 Multipurpose Use
Shape Ring, Block, Disc, Cylinder, Bar, Arc etc.(ferrite magnet shape can customized)
Material Sro or Bao and Fe2o3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade

Y25, Y30, Y33, Y35

Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C

In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required
  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Application of the magnets
  4. Max working temperature
  5. Quantity required
  6. Delivery with Magnetized or not? Magnetization direction?

Material Grade Specification:

 Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 1



Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 2



More Shapes:

Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 3

Applications of Ferrite Magnets:

• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts

Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets



Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 4

Established in 2008, located in Dongguan City, Dongguan Vision Plastics Magnetoelectricity Technology Co., Ltd. is a high-tech manufacturer for magnetic material, we mainly specialize in permanent neodymium magnet and ferrite magnet.

Our factory have 3000 square meters area, with first-class production equipment and perfect testing philosophy, that means we can provide top-quality products for our customers. Now we have export our magnet to Europe, North American, Southeast Asian and other countires.
For all, We persist in providing superior quality, competitive prices as well as prompt delivery. Based on this strong background for many years. We serve our customers sincerely while they treat us as their trustful friends.



 Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 5

Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 6



Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 7

Standard packing for sea and air transportation, box carton with plastic sack or composite board box to protect the magnets.

Or for customer request.

Custom Strontium / Barium Ferrite Ring Magnet Y25 Y30 Y33 Y35 Multipurpose Use 8
