Permanent Rare Earth Large Ferrite Block Magnet Y25 Y30 Y35 Industrial Use

Basic Information
Place of Origin: People's republic of China
Brand Name: VISION
Certification: ISO9001:2008; Rohs, Reach,SGS
Model Number: Y25 Y30 Y33 Y35
Minimum Order Quantity: 1 PIECE
Price: Negotiable
Packaging Details: Standard packing for sea and air transportation( box carton with plastic sack or Composite board box) for bar ferrite magnet, or for customer request.
Delivery Time: 5 -15 work days
Payment Terms: negotiable
Supply Ability: 1000 Tons per Month
Detail Information
Material: Sintered Ferrite (ceramic) Magnets Magnetized Direction: Isotropic And Anisotropic
Application: Industrial Use Household Application For Weld Shape: Block Rectangle
Properities: Anisotropic Type: Permanent Rare Earth
Color: Black
High Light:

ferrite cylinder magnet

,

ferrite rod magnets


Product Description

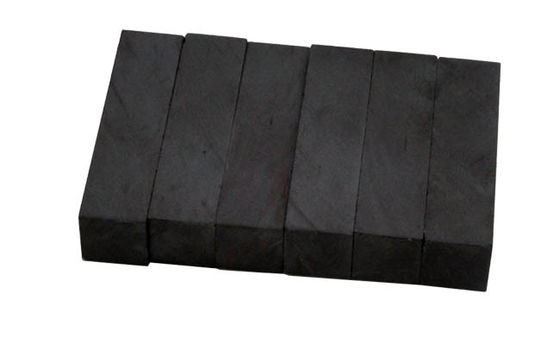

Permanent Rare Earth Large Ferrite Block Magnet Y25 Y30 Y35 Industrial Use



Sintered ferrite (ceramic) magnets are also available in forms of isotropic and an-isotropic. The magnetic properties of isotropic ferrite are the same in all directions, therefore they can be magnetized in any pole arrangements.

An-isotropic ferrite magnets, on the other hand, can only be magnetized in the direction they are oriented during production, but they have much higher magnetic strength than isoptropic ones.



Product Description

Produce name Permanent Rare Earth Large Ferrite Block Magnet Y25 Y30 Y35 Industrial Use
Shape Bar, Block  (Ferrite magnet size and shape can be customized)
Material SrO or BaO and Fe2O3
Coating No
Tolerance in size Length and Width: +/- 2%, Height: +/- 0.1
Magnetization direction Thickness, Length, axially, diameter, radially, multipolar
Grade Y25, Y30, Y33, Y35 etc
Process Sintered Ceramic processing technology
MOQ Samples could be offered
Delivery time 3 to 10 days for sample, 10 to 30 days for order. (According to the stock information)
Application Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Educations, etc
Certification ROHS, SGS, ISO9001
Characteristics Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Payment T/T, western Union, Paypal, L/C



In order to quote the best price to you in timely, please kindly provide the following information when you send the inquiry:

  1. Material type and grade required

  2. Size and shape, if available, a sketch or drawing with dimensions and tolerances.
  3. Application of the magnets
  4. Max working temperature
  5. Quantity required
  6. Delivery with Magnetized or not? Magnetization direction?



Applications of Ferrite Magnets:

• Speaker magnets
• DC brushless motors
• Magnetic Resonance Imaging (MRI)
• Magnetos used on lawnmowers and outboard motors
• DC permanent magnet motors (used in cars)
• Separators (separate ferrous material from non-ferrous)
• Used in magnetic assemblies designed for lifting, holding, retrieving and separating
• Magnetic Door Catcher
• Instrument and Meters
• Toys
• Arts and crafts
Permanent Rare Earth Large Ferrite Block Magnet Y25 Y30 Y35 Industrial Use 0
Attributes of ferrite Magnets:
• Least expensive material compared to alnico and rare earth magnets
• High intrinsic coercive force
• Available in simple shapes only due to manufacturing process
• Lower service temperature than alnico, greater than rare earth
• Lower energy product than alnico and rare earth magnets

• Strong permanent rare earth



Advantage:

• 10 years experiences in manufacturing Ferrite magnet.

• Bar Ferrite magnet size and shape can be customized.

• Fast delivery and reasonable price.

Permanent Rare Earth Large Ferrite Block Magnet Y25 Y30 Y35 Industrial Use 1
